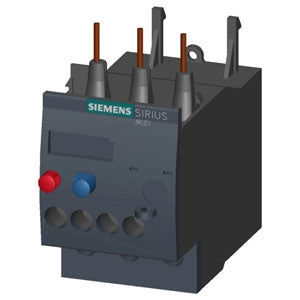

3RU21 thermal overload relays up to 100 A have been designed to provide current-dependent protection for loads with normal starting against impermissibly high temperature rises due to overload or phase failure. An overload or phase failure results in an increase of the motor current beyond the set rated motor current. Via heating elements, this current rise heats up the bimetal strips inside the device which then bend and as a result trigger the auxiliary contacts by means of a tripping mechanism. The auxiliary contacts then switch off the load by means of a contactor. The break time depends on the ratio between the tripping current and the current setting and is stored in the form of a long-term stable tripping characteristic curve. The 3RU2 thermal overload relays are suitable for operation with frequency converters. The devices are manufactured in accordance with environmental guidelines and contain environmentally friendly and reusable materials. They comply with all important worldwide standards and approvals. The 3RU21 thermal overload relays are suitable for customers from all industries who want to guarantee optimum inverse-time delayed protection of their electrical loads (e.g. motors) under normal starting conditions (CLASS 10, 10A). The 3RU21 thermal overload relays have been designed for the protection of three-phase and single-phase AC and DC motors.

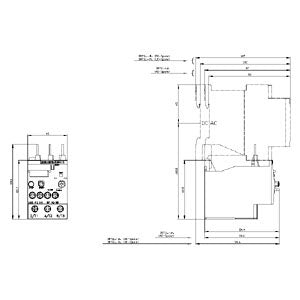

Specifications:

Type: Thermal
Motor FLA: 11 to 16 Amp
Number of Poles: 3
Trip Class: Class 10
Reset Type: Automatic/Manual
Ambient Temperature: Compensated
Auxiliary Contact: 1NO-1NC
Contact Rating: 690 Volt AC at 50/60 Hertz
Terminal Type: Screw
Mounting: Contactor
Enclosure: IP20
Application: 3-Phase
Approval: UL, CSA, CE, CCC, EAC, ATEX, IECEx
