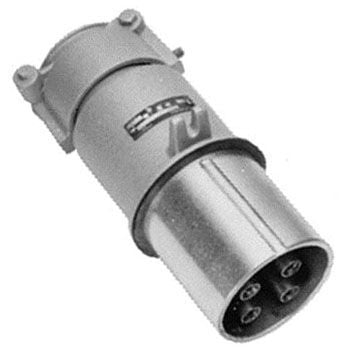

Powertite Series Plugs use our versatile pin and sleeve design to provide safe, reliable power for any type of heavy duty equipment, fixed or portable. They feature widely spaced contacts recessed within an internal arc snuffing chamber, insulating blocks, positive polarization and a durable neoprene sealing bushing. Shell only or shell plus extra pole grounding provides safe, "make first, break last" grounding.

Specifications:

Type: Positive Polarized, Compressor, Motor Generator Unit, Pump, Welding, Spring Door
Constructional Feature: Weatherproof
Voltage Rating: 600 Volt AC 3-Phase at 50 to 400 Hertz, 250 Volt DC
Current Rating: 200 Amp
Number of Poles: 4
Number of Wires: 3
Grounding Style: 2, Shell, Extra Pole
Minimum Cable Outer Diameter: 1.875 Inch
Maximum Cable Outer Diameter: 2.5 Inch
Material: Epoxy Powder Coated Copper-Free Aluminum
Approval: UL 1682/1689/50E, CSA C22.2
