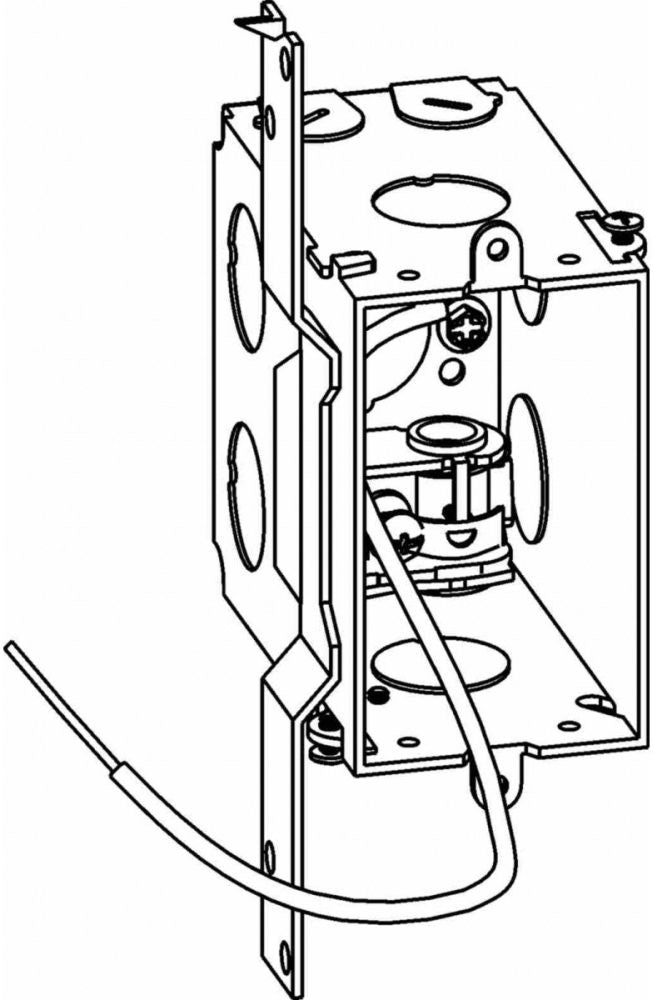

Orbit Industries GDB-1-MC-FB Electrical Switch Box

In stock - 30 items available
SKU: 190172
Regular price $7.25

Removable Side Cover for Multi-Gang Applications; MC Clamp for Metal Clad Cable; FB Bracket for Offset Mounting on Flat Side of Stud or Joist; RoHS Compliant; Made in USA


Type: Gangable
Height: 3 Inch
Width: 2 Inch
Depth: 3-1/2 Inch
Capacity: 18 Cu Inch
Number of Knockouts: 11
Knockout Location: (1) Bottom, (4) Side, (6) Side
Knockout Size: (1) 1/2 Inch Bottom, (4) 1/2 Inch Side, (2) 1/2 Inch End, (4) Loom Pryout End
Number of Gangs: 1
Material: 16 Gauge Galvanized Sheet Steel
Mounting: 9/16 Inch Setback FB Bracket
Clamp Type: Metal Clad Cable
Approval: UL 514A, UL (Canada and US)
Standard Package: 50
