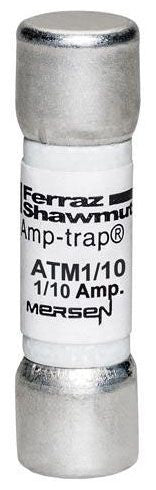

Mersen EP ATM1/10 Midget Fuse

Amp-Trap midget fast-acting ATM fuses are rated 600 volts AC and DC, with a 100kA interrupting rating. These ratings give the ATM a wide range of applications not covered by other midget fuses. In addition, ratings of 30/35, 30/40 and 30/50 amperes are offered for specific applications such as capacitor protection. These ATM fuses must still be considered 30A fuses because of their dimensions, but are able to withstand much higher inrush currents and tougher duty cycles.

Specifications:

Characteristics: Fast Acting
Voltage Rating: 600 VAC/VDC
Current Rating: 1/10 Ampere
Interrupting Rating: 100 Kiloampere (AC/DC)
Terminal Type: Ferrule
Diameter: 0.41 Inch
Length: 1.5 Inch
Approval: UL 248-14, CSA C22.2
