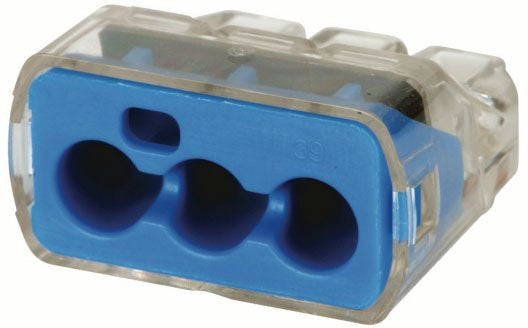

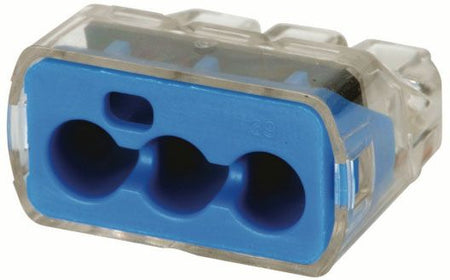

IDEAL Electrical 30-1039J Push-In Wire Connector
Regular price
$0.40
Couldn't load pickup availability
If it's IDEAL, it's a quality connector - and the In-Sure Push-In Wire Connector is no exception. Color-coded, the clear polycarbonate housing allows for visual verification of every connection. The ergonomic design of the In-Sure is easier to grip which means more comfortable push-in type connections.
Specifications:
Voltage Rating: 600 Volt, 1000 Volt (Fixture/Sign)
Wire Size: 14 to 10 AWG (Solid), 12 to 10 AWG (19 Strands), 14 to 10 AWG (19 Strands) Tin-Bonded Stranded
Number of Ports: 3
Material: Nylon/Polycarbonate
Color: Blue (Face), Transparent (Housing)
Temperature Rating: 105 Deg C
Standard Package: 150 per Jar
Approval: UL 467/486C, CSA C22.2, CE
