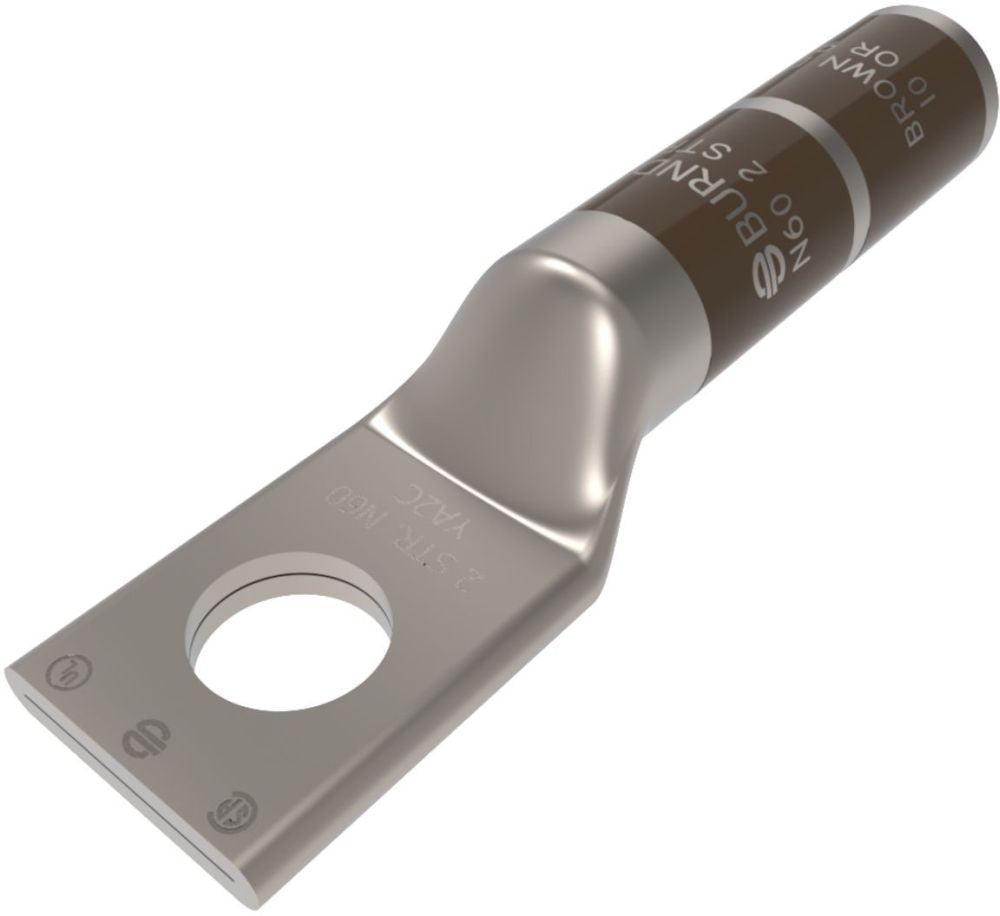

Burndy YA2C Compression Cable Lug

Out of stock
SKU: 191017
Regular price $10.51

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with a Belled End Opening at the wire Entry to Ensure Smooth Insertion of Highly Flexible Standard Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection


Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 2 AWG (Stranded)
Barrel Type: Long, Standard, Straight, Chamfered Entry
Barrel Length: 1.25 Inch
Pad Size: 0.6 Inch Width x 0.11 Inch Thickness
Number of Pad Holes: 1
Stud Size: 5/16 Inch
Color: Brown
Die Index: 10
Material: Electro Tin Plated Copper
Overall Length: 2.29 Inch
Approval: UL468A/B, CSA
