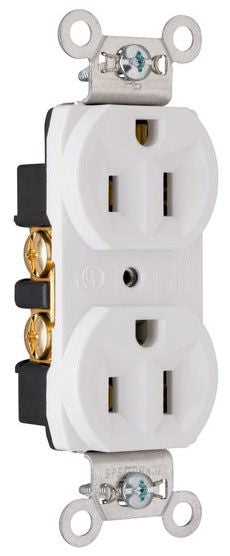

Pass & Seymour CRB5362W Straight Blade Receptacle

  • Sale
  • Regular price $6.42
Shipping calculated at checkout.


Corrosion-Resistant, Plated Steel Strap Locked into Face and Back Body to Resist Pulling Away from Face/Body Assembly; 0.032 Inch Thickness Brass Triple-Wipe Power Contacts for Lasting Retention; Easily Accessed Break-Off, Line-Contact Connecting Tab for Fast, Easy Split-Circuit Wiring; Impact-Resistant Nylon Face and Thermoplastic Back Body; 8 Hole Internal Screw Pressure Plate Back Wire Terminals Accept #10 to #14 AWG Solid or Stranded Copper or Copper Clad Conductors; Terminal Compartments Isolated from Each Other for Positive Conductor Containment; Tri-Drive Terminal and Mounting Screws; Auto-Ground Clip Assures Positive Ground

Specifications:

Type: Duplex
Constructional Feature: Corrosion/Impact Resistant
Configuration: 5-20R
Voltage Rating: 125 Volt AC
Current Rating: 20 Amp
Number of Poles: 2
Number of Wires: 3
Ground Type: Grounding
Material: Nylon (Face), Thermoplastic (Back Body)
Color: White
Wiring: Back, Side
Grade: Construction, Specification
Approval: UL 498, CSA C22.2
