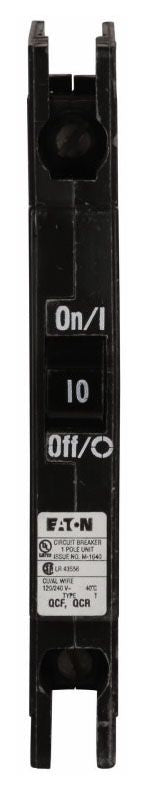

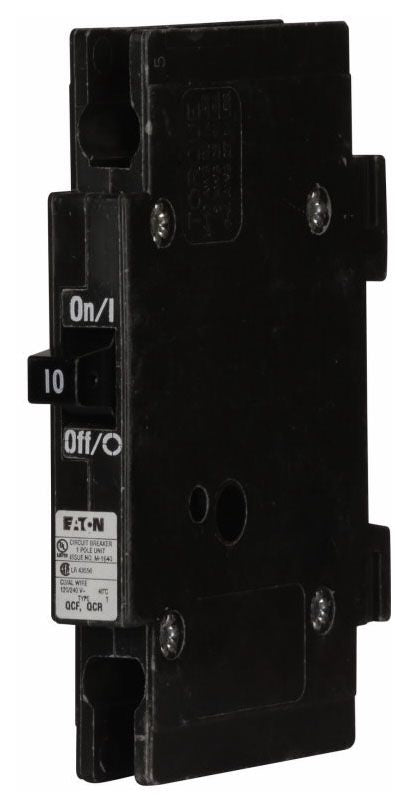

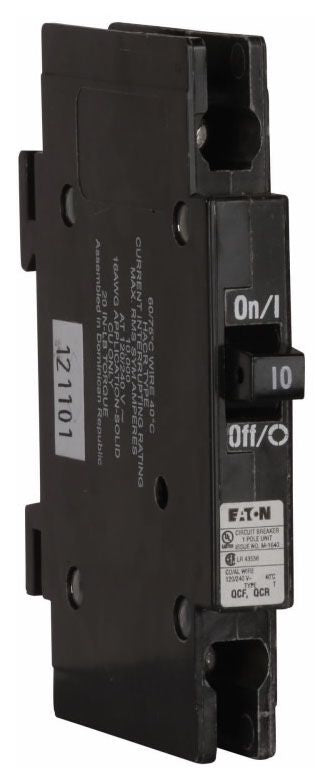

Eaton Type QCR circuit breakers have as a standard feature provisions for 35 mm DIN rail rear mounting with a spring-loaded release. Optional clips for individual mounting are available as a separate accessory.

Specifications:

Type: Thermal Magnetic, Branch
Number of Poles: 1
Voltage Rating: 120/240 Volt AC
Current Rating: 10 Amp at 40 Deg C
Interrupting Rating: 10 Kiloamp at 120/240 Volt AC, 3000 Amp at 24 to 48 Volt DC, 2000 Amp at 62.5 Volt DC
Terminal Type: Box
Wire Size: 14 to 4 AWG (Aluminum/Copper)
Mounting: 35 MM DIN Rail, Cable-In/Out
Approval: UL 489, CSA
