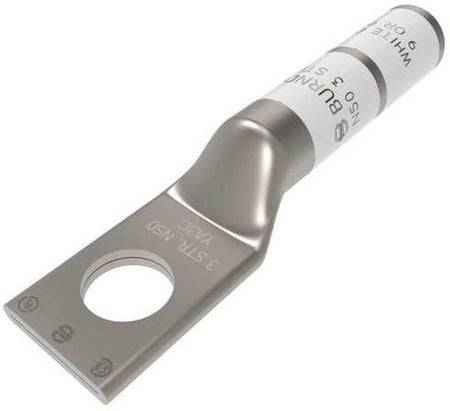

Burndy YA3C Compression Cable Lug

Out of stock
SKU: 192924
Regular price $10.51
OR

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with a Belled End Opening at the wire Entry to Ensure Smooth Insertion of Highly Flexible Standard Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection

Specifications:

Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 2 AWG Solid, 3 AWG Stranded, 50 Navy
Barrel Type: Long, Belled, Straight
Barrel Length: 1.25 Inch
Pad Size: 0.55 Inch Width x 0.09 Inch Thickness
Number of Pad Holes: 1
Stud Size: 5/16 Inch
Color: White
Die Index: 9
Material: Electro-Tin Plated Copper
Overall Length: 2.3 Inch
Approval: UL 468A/B, CSA
