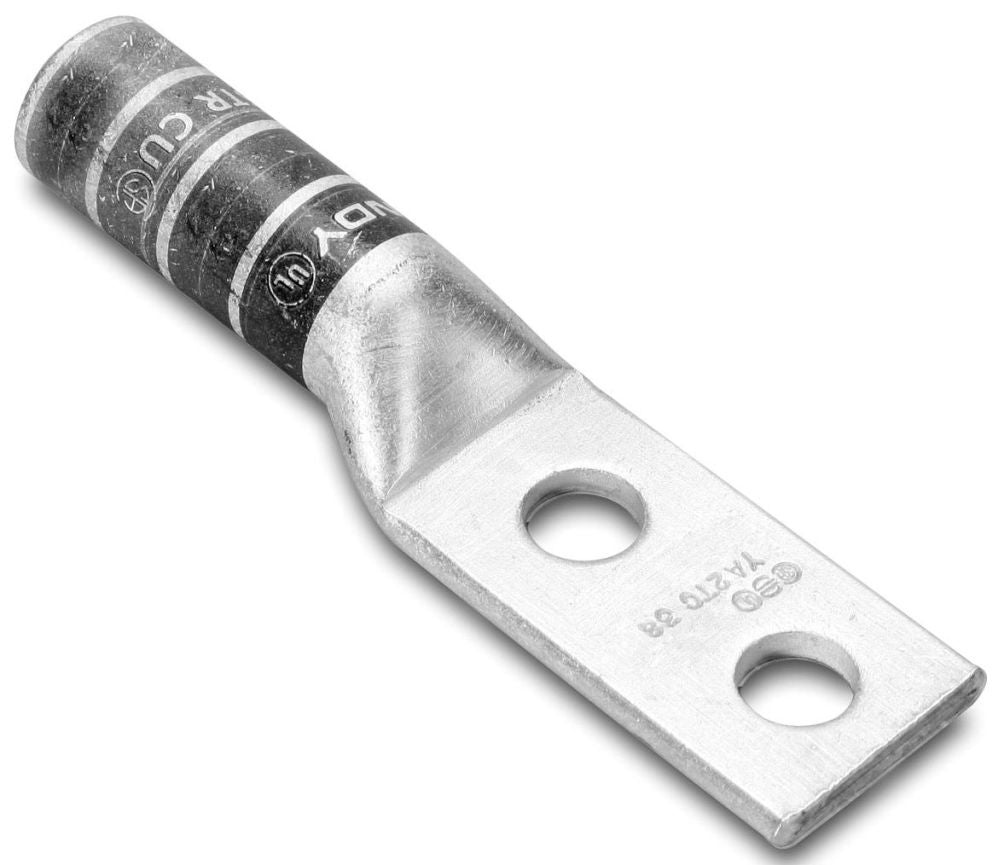

Burndy YA8C2TC38 Compression Cable Lug

Out of stock
SKU: 192961
Regular price $8.65

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with a Belled End Opening at the wire Entry to Ensure Smooth Insertion of Highly Flexible Standard Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection


Voltage Rating: 35 Kilovolt
Conductor Material: Copper
Conductor Size: 6 AWG Solid, 8 AWG Solid/Stranded (Code), 23 (Navy), 37/24 (DLO), 8 AWG (Flex)
Barrel Type: Long, Straight
Barrel Length: 0.81 Inch
Pad Size: 0.58 Inch Width x 0.06 Inch Thickness
Number of Pad Holes: 2
Pad Hole Spacing: 1 Inch
Stud Size: 3/8 Inch
Color: Red
Die Index: 49
Material: Electro Tin Plated Copper
Overall Length: 2.89 Inch
Approval: UL, CSA
