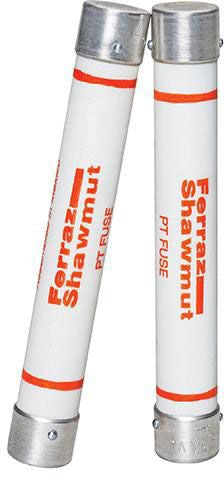

Mersen EP 9F60BHH905 Potential Transformer Protection Fuse
Regular price
$800.99
Couldn't load pickup availability
Mersen PT fuses are current-limiting fuses with high interrupting rating, used for the primary winding protection of potential transformer. They are small dimension ferrule type fuses and mount in standard clips. Current ratings are from 0.25A to 5A.
Specifications:
Type: Potential Transformer
Characteristics: Non-Venting
Voltage Rating: 15500 Volt AC
Current Rating: 0.5 Amp
Interrupting Rating: 50 Kiloamp (Maximum Symmetrical)
Indication Type: Blown Fuse
Terminal Type: Ferrule
Mounting: Clip
Diameter: 1.56 Inch
Length: 12.88 Inch
