Burndy KKA31U2N Mechanical Cable Terminal Lug
Regular price
$28.18
Couldn't load pickup availability
RoHS Compliant
Specifications:
Minimum Conductor Size: 6 AWG Stranded
Maximum Conductor Size: 350 KCMIL Stranded
Conductor Material: Copper/Aluminum
Material: Electro Tin Plated Aluminum Alloy
Number of Pad Holes: 2

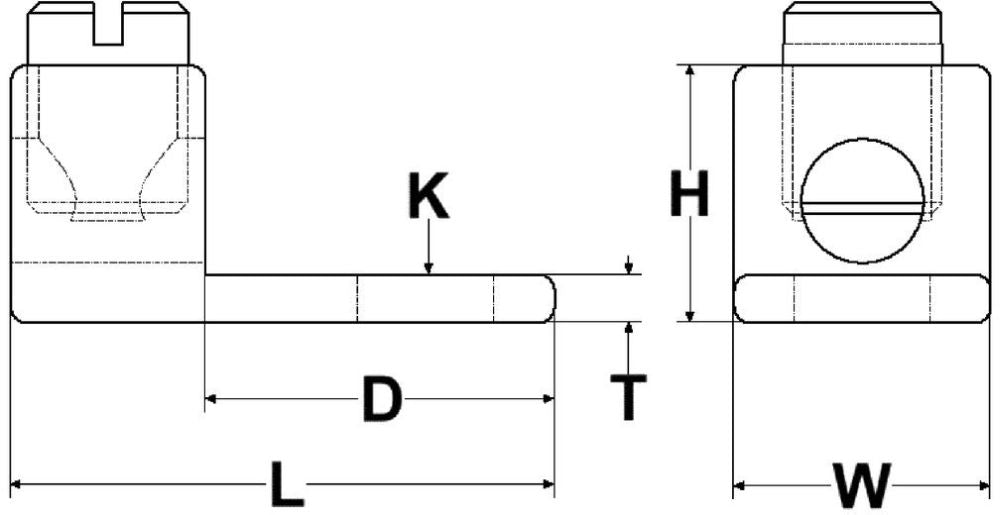

Pad Size: 1.27 Inch Width x 0.38 Inch Thickness
Stud Size: 1/2 Inch
Overall Length: 5.5 Inch
Approval: UL 468A/B, CSA
