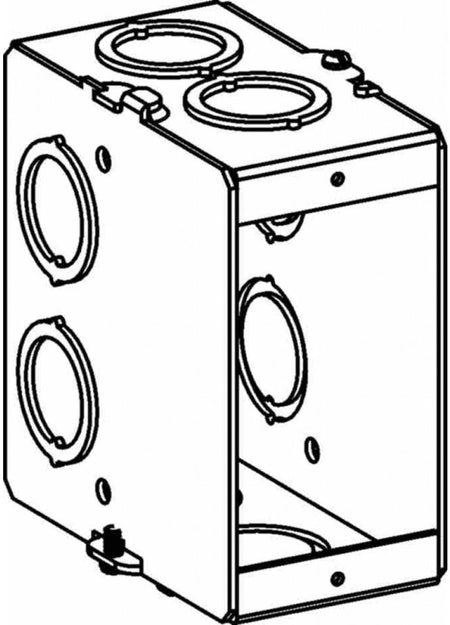

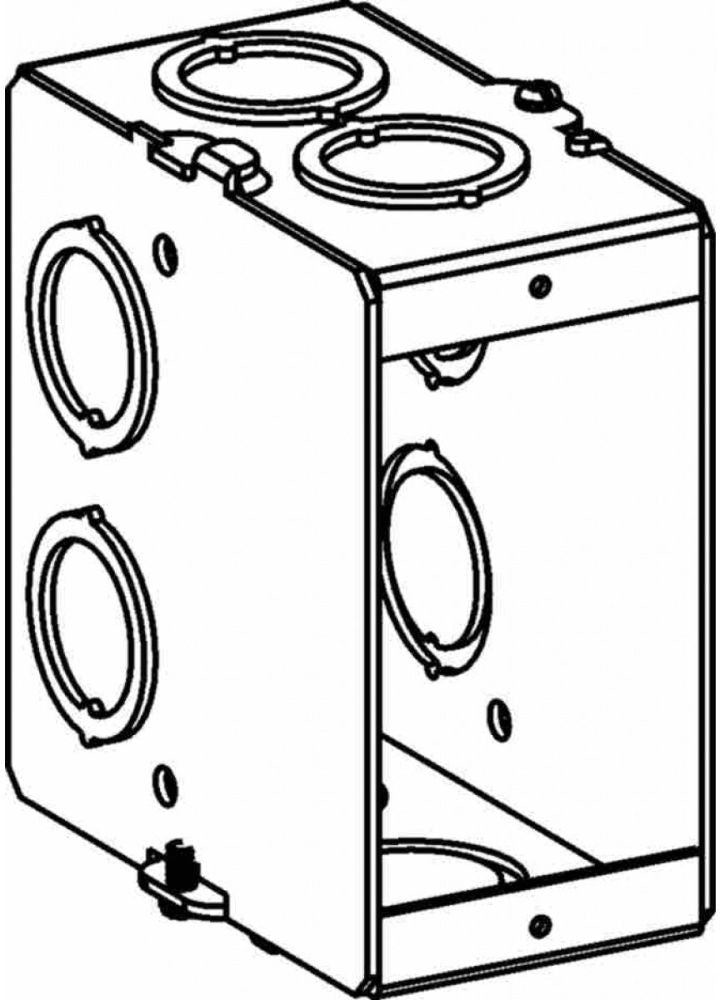

Orbit Industries MBG-1 Electrical Masonry Switch Box

  • Sale
  • Regular price $6.25
Shipping calculated at checkout.


Removable Side Cover for Multi-Gang Applications; RoHS Compliant; Made in USA

Specifications:

Type: Gangable
Height: 3-3/4 Inch
Width: 1-7/8 Inch
Depth: 3-1/2 Inch
Capacity: 23.5 Cu Inch
Number of Knockouts: 9
Knockout Location: (1) Bottom, (4) Side, (4) End
Knockout Size: (1) 1/2 Inch and 3/4 Inch Bottom, (4) 1/2 Inch and 3/4 Inch Side, (4) 1/2 Inch and 3/4 Inch End
Number of Gangs: 1
Material: 16 Gauge Galvanized Welded Sheet Steel
Approval: UL 514A, UL (Canada and US)
Standard Package: 25
