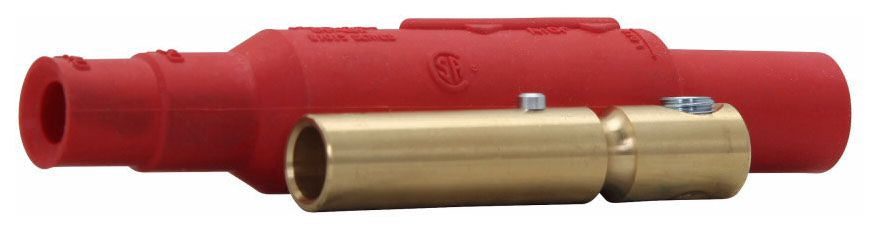

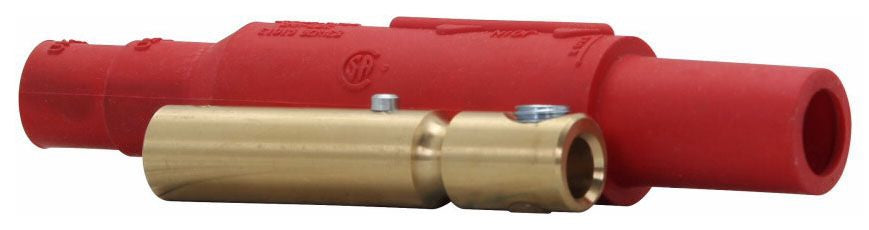

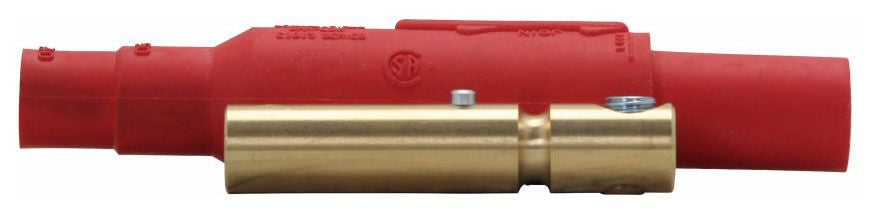

Crouse-Hinds E1015-8338 Cam Type Plug

Double Cam Principle Provides a Positive, Vibration-Proof Connection; Self-Compensating for Wear; No Moving Contact Surfaces, Eliminating Arcing or Burning; Superior Electromechanical Connections; Locked Contacts will withstand a Pulling Force of 1000 Lbs; 1/3 of a Turn Assures a High Pressure Contact Approaching 600 Lbs. per Sq-Inch Providing Minimum Resistance; Contacts Carefully Machined from a High Conductivity Brass to a Smooth Sliding Fit and Easy Locking Action; Watertight Elastomeric Insulators Molded from Colorfast Material, Color-Coded for Easy Phase Identification; Recessed Contacts Protected by Insulating Jacket that Extends Beyond Contact Ends for Safety; Integrated Strain Relief System Features a Retaining Wire that Prevents Cable Jacket Pull-Away and Bare Conductor Exposure; Accepts a Wide Range of Cable Sizes

Specifications:

Type: Female
Voltage Rating: 600 VAC/VDC
Current Rating: 150 Ampere
Cable Size: 8 to 4 AWG
Connection Type: Set Screw
Number of Poles: 1
Insulator Material: Thermoplastic Elastomer
Contact Material: Brass
Insulator Color: Blue
Process: Non-Vulcanized
Enclosure: NEMA 3R
Size: 0.63 Inch Dia x 4.61 Inch L
Application: Motor, Generator, Indoor/Outdoor Lighting Distribution Panel
Approval: UL 1691, CSA C22.2
