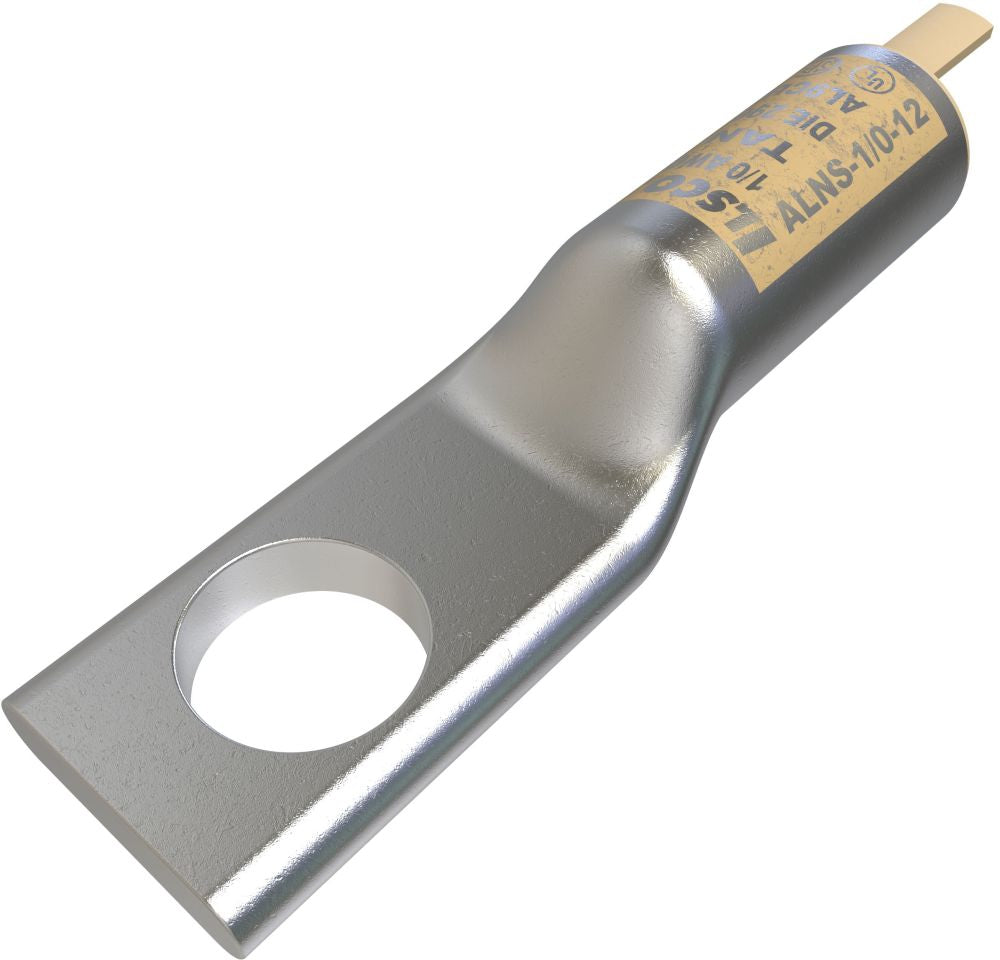

Ilsco ALNS-1/0-12 Compression Cable Lug

Manufactured from High Strength Aluminum Alloy Offers Maximum Conductivity and Excellent Crimping Characteristics; Electro Tin Plated Provides Low Contact Resistance; Chamfered Entry for Easy Conductor Insertion; Color Coded End Cap Identifies the Proper Compression Die; Roll Marked for Easy Identification and Proper Location of Crimps; Pre-Filled with De-Ox Oxide Inhibiting Compound Prevents Oxides from Forming and Promotes Connector Longevity; Range Taking Permits Inventories to be Kept to a Minimum; Application Versatility; RoHS Compliant

Specifications:

Voltage Rating: 35 Kilovolt
Conductor Material: Copper/Aluminum
Conductor Size: 1/0 AWG
Barrel Type: Standard, Long
Barrel Length: 1.07 Inch
Pad Size: 1.292 Inch Length x 0.819 Inch Width
Number of Pad Holes: 1
Stud Size: 1/2 Inch
Color: Tan
Die Index: 296
Material: Electro-Tin Plated Aluminum Alloy
Overall Length: 2.82 Inch
Approval: UL E6207/453G/486A/B, CSA
