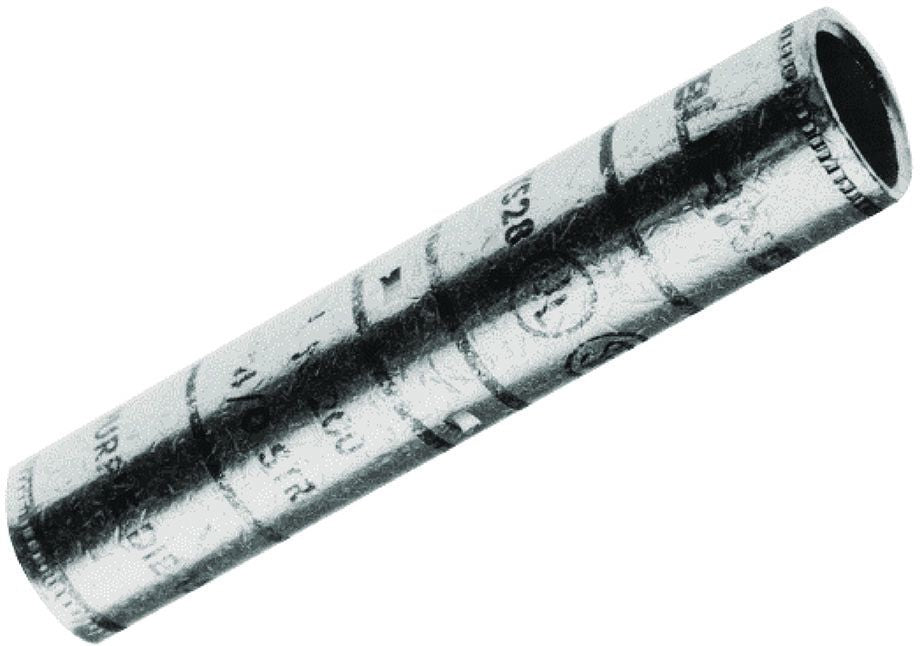

Burndy YS27 Compression Cable Splice

In stock - 8 items available
SKU: 194954
Regular price $22.32
OR

Long Barrel Length: Ideal for 600 Volt Heavy Duty Application, also May be Used at Higher Voltages up to 35kv, Four (4) Center Conductor Stop: Provides a Center Wire Stop for Proper Conductor Insertion, High Pull Out Force: Provides Added Security for Much Greater Mechanical and Electrical Properties; RoHS Compliant

Specifications:

Type: Butt with Center Wire Stop
Voltage Rating: 35 Kilovolt
Conductor Size: 3/0 AWG Stranded
Conductor Material: Copper
Color Code: Orange
Barrel Type: Long with Bevelled Entry, Chamfered
Length: 3.3 Inch
Outer Diameter: 0.62 Inch
Body Material: Electro Tin Plated Copper
Approval: UL, CSA
