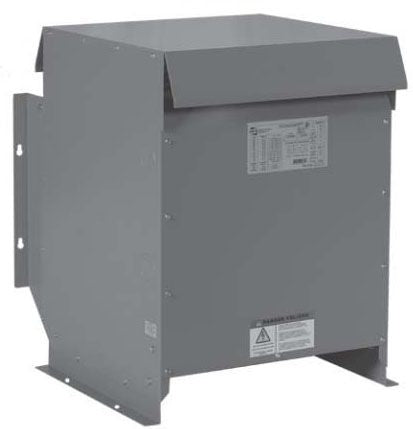

Hammond Power Solutions NMK015BK Energy Efficient Distribution Transformer

Energy Efficient General Purpose Transformers are Designed for Linear Loads and are Most Frequently Used for Applications Such as Commercial Buildings to Supply a Variety of General Loads; Heavy Duty Ventilated Type 3R Optional Type 4, 4X (Stainless Steel) and 12; Front Accessible Separate High and Low Voltage Terminals; Connectors Suitable for Aluminum are Provided for Easy Cable Installation; Conduit Knock-Outs Standard on All Units (No Knock-Outs on Stainless Steel Enclosures)

Specifications:

Construction: Ventilated
Primary Voltage: 208 V Delta
Secondary Voltage: 480 V Star/277 V
Frequency Rating: 60 Hz
Power Rating: 15 KVA
Number of Phases: 3
Winding Type: Aluminum
Temperature Rise: 150 Deg C
Enclosure: NEMA 3R
Size: 19.4 Inch W x 20.2 Inch D x 21.5 Inch H
Mounting: Floor/Wall
Application: Linear Loads, Commercial Buildings, Supplying Appliance, Lighting, Heating, Motorized Machine and Power Loads from Electrical Distribution Systems
Approval: UL, CSA C802.2
