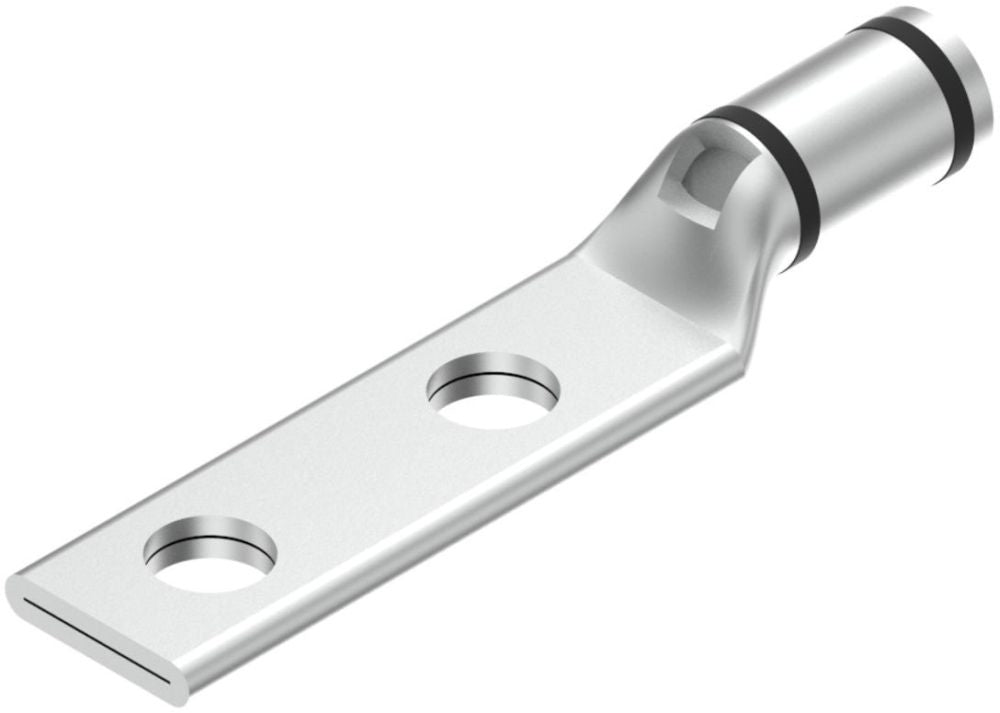

HYLUG Type YAV is a seamless, heavy duty uninsulated compression terminal manufactured from electrolytic copper and is for use on Type AN aircraft cable, extra flexible conductors and commercial (code) conductors. The seamless tubing produces a double thick tongue and seamless barrel design provides a strong connector for demanding applications requiring high reliability.

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 325/24 Diesel Locomotive Cable, 2/0 AWG Class G/H/I (Weld Flex), 2/0 AWG Stranded
Barrel Type: Short, Skived, Standard, Straight
Barrel Length: 0.81 Inch
Pad Size: 0.93 Inch W x 0.13 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1-3/4 Inch
Stud Size: 1/2 Inch
Color: Black
Die Index: 13
Material: Electro-Tin Plated Copper
Overall Length: 4.31 Inch
Approval: UL, CSA
