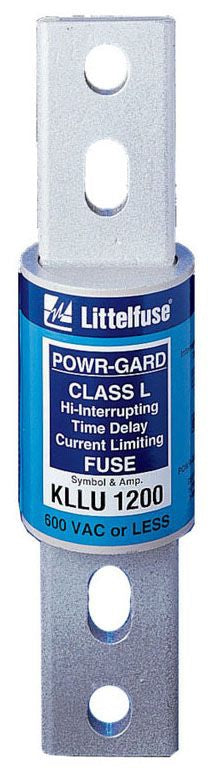

KLLU series UL Listed, time-delay, Class L are quality fuses in every sense of the word. They were developed to provide a somewhat lower priced alternate to the POWR-PRO KLPC series fuses. KLLU series fuses meet or exceed all UL requirements for Class L fuses. For superior protection and performance, specification-grade POWR-PRO KLPC series fuses are the recommended fuses.

Specifications:

Type: Class L
Characteristics: Time Delay
Voltage Rating: 600 VAC/300 VDC
Current Rating: 800 Ampere
Interrupting Rating: 200000 Ampere (Symmetrical), 20000 Ampere (DC)
Terminal Type: Blade
Diameter: 2-1/2 Inch
Length: 8-5/8 Inch
Approval: UL 248-10, CSA, CE
