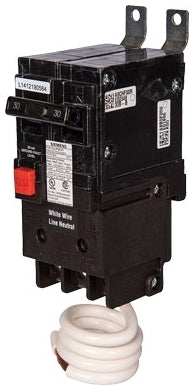

Provides Protection of Equipment from Damaging Line-To-Ground Faults Currents, De-Energizes the Circuit for all Ungrounded Conductors of the Circuit

Specifications:

Type: Molded Case, Equipment Protector
Number of Poles: 2
Voltage Rating: 120/240 VAC
Current Rating: 30 Ampere
Interrupting Rating: 10 Kiloamp
Trip Sensitivity: 30 Milliamp
Terminal Type: Load Lug
Wire Size: 12 to 8 AWG (Aluminum), 14 to 10 AWG (Copper)
Mounting: Bolt-On
Used On: Loadcenter, P1/P2/P3/P4/P5 Panelboard
Size: 3.6 Inch Width x 6.2 Inch Depth x 2.5 Inch Height
Approval: UL 489
