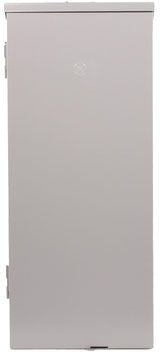

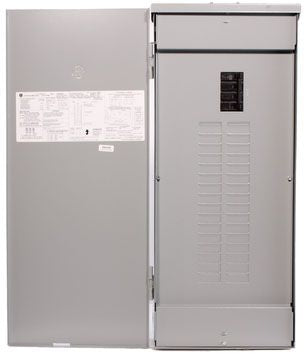

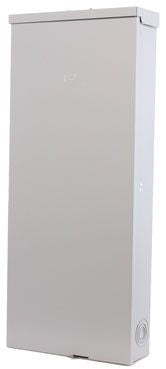

PowerMark Gold load centers lower your costs by making installation faster and easier, increasing application flexibility and reducing inventory requirements. At the same time, they deliver obvious and significant advances in design, function and quality.

Specifications:

Type: Main Breaker
Voltage Rating: 120/240 Volt AC
Current Rating: 200 Amp
Circuit Configuration: 1-Phase 3-Wire
Maximum Number of Circuits: 32
Maximum Number of Spaces: (32) 1-Pole 1 Inch THQL/(16) 2-Pole 1 Inch THQL/(16) 1-Pole 1/2 Inch THQP/(6) 2-Pole 1/2 Inch THQP
Main Breaker Type: THQL/THQP
Breaker Mounting: Plug-In
Interrupting Rating: 22 Kiloamp
Neutral Type: Split
Bus Material: Tin Plated Copper
Feed Location: Top
Main Wire Size: 1 AWG to 250 KCMIL (Copper), 2/0 AWG to 250 KCMIL (Aluminum)
Enclosure Type: NEMA 3R, Outdoor
Enclosure Size Designation: R7
Size: 14 Inch Width x 4-5/8 Inch Depth x 39-3/16 Inch Height
Approval: UL
