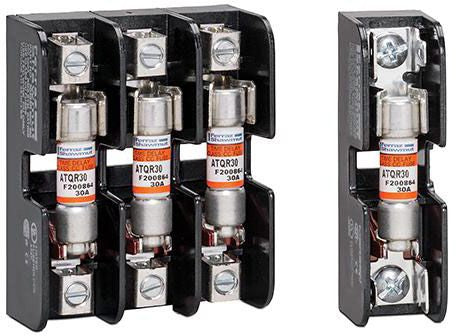

Mersen EP 30322 Fuse Block

Out of stock
SKU: 196208
Regular price $9.49
OR

Midget Fuse Blocks Accommodate All 30 Amp 1-1/2 Inch X 13/32 Inch Midget Fuse; A Choice of Box, Screw or Pressure Plate Connectors Fit a Wide Range of Stranded or Solid Copper Wire; Insulators are Glass Filled Polycarbonate (Gap) with Verified Dielectric Strength in Excess of 2500 Volt; Fuse Blocks Feature a Unique Adder Block Which Can be Snapped Onto 1, 2 or 3-Pole Blocks to Form Multi-Pole Segmented Blocks of as Many Poles as Desired; All Fuse Clips are Made of High Conductivity Tin Plated Copper Alloy; RoHS/REACH Compliant

Specifications:

Type: Open Style
Body Material: Glass Filled Polycarbonate
Number of Poles: 2
Fuse Type: Midget
Fuse Voltage Rating: 600 Volt AC/DC
Fuse Current Rating: 30 Amp
Wire Size: 14 to 10 AWG (Copper)
Terminal Type: Pressure Plate with Double Quick-Connect
Clip Type: Tin Plated Copper Alloy
Approval: UL 4248, CSA
