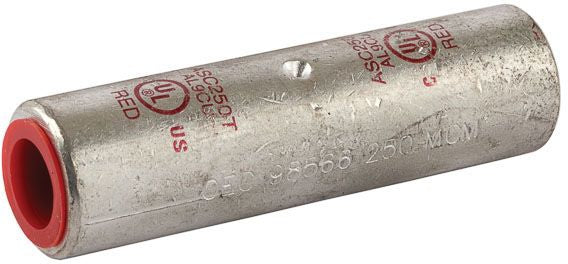

Produced from High Conductivity Aluminum Tubing; Center Stop Assures Proper Cable Installation; Electro Tin Plated for Corrosion Resistance; Color Coded and Marked with Die Index Information; Pre-Filled with Oxide Inhibitor and Capped with Color Coded Cap; Listed for 35 Kilovolt Maximum When Properly Installed to Cable Manufactures Specifications

Specifications:

Type: Center Wire Stop
Voltage Rating: 600 Volt
Conductor Size: 250 KCMIL Stranded
Conductor Material: Copper/Aluminum
Color Code: Red
Barrel Type: Standard
Length: 3.248 Inch
Inner Diameter: 0.59 Inch
Outer Diameter: 0.938 Inch
Body Material: Tin Plated Aluminum
Approval: UL 486A/B, UL (Canada and US)
