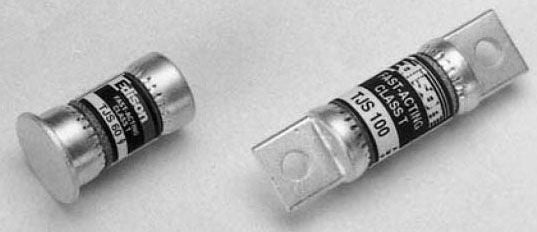

Edison's Class T current-limiting, fast-acting fuses. Provides 10X better current limitation to help prevent equipment damage caused by short-circuit events. 200 kA Interrupting rating complies with NEC Section 110.9 for todayâ€s large capacity systems. Small, space-saving fuses provide a high degree of current limitation on short-circuits for excellent component protection.

Specifications:

Type: Class T
Characteristics: Extremely Fast Acting
Voltage Rating: 600 VAC
Current Rating: 50 Ampere
Interrupting Rating: 200 Kiloampere (Symmetrical)
Terminal Type: Ferrule
Diameter: 0.81 Inch
Length: 1.56 Inch
Approval: UL, CSA C22.2, CE
