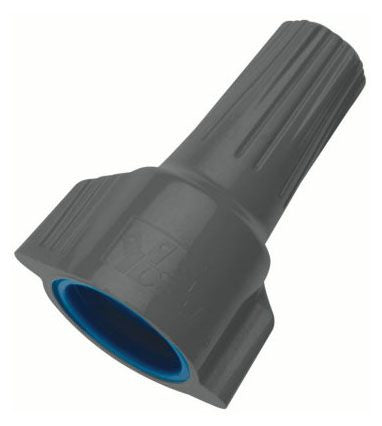

IDEAL Electrical 30-1163 Wire Connector

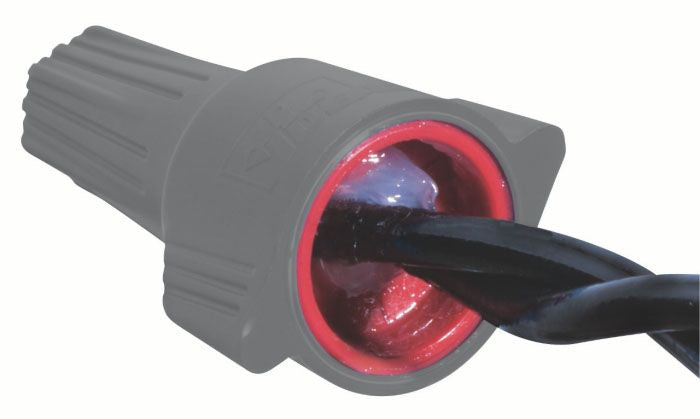

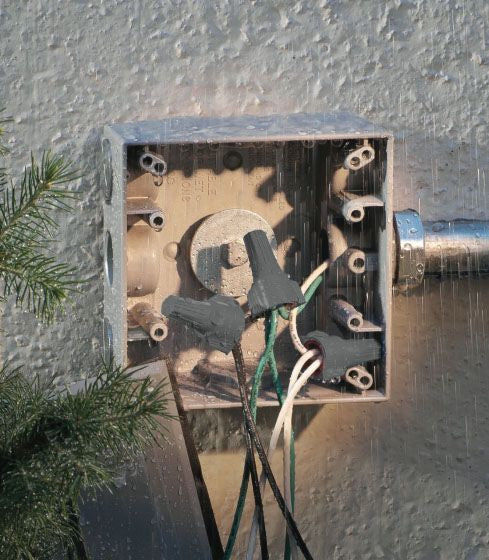

Weatherproof Wire Connectors are the Perfect Twist-On Solution for Connections that Require Protection from the Elements. The Swept-Wing Design Makes the Connector Easy and Comfortable to Apply, While the Pre-Filled, Silicone-Based Sealant Protects Against Moisture and Corrosion, Eliminating the Need for Heat-Shrink Or Excessive Taping. Weatherproof Wire Connectors Feature Tough, Flame-Retardant Shells that Withstand Most Rugged Environmental Extremes and are Listed to Ul 486D for Use in Damp or Wet Locations that are Above Ground.

Specifications:

Type: Swept Wing
Voltage Rating: 600 V
Wire Type: Copper
Wire Size: 16 to 6 AWG
Minimum Wire Combination Size: (3) #14
Maximum Wire Combination Size: (5) #10
Color: Gray/Dark Blue
Temperature Rating: 105 Deg C
Standard Package: 15 per Card
Approval: UL 486D, CSA, CE
