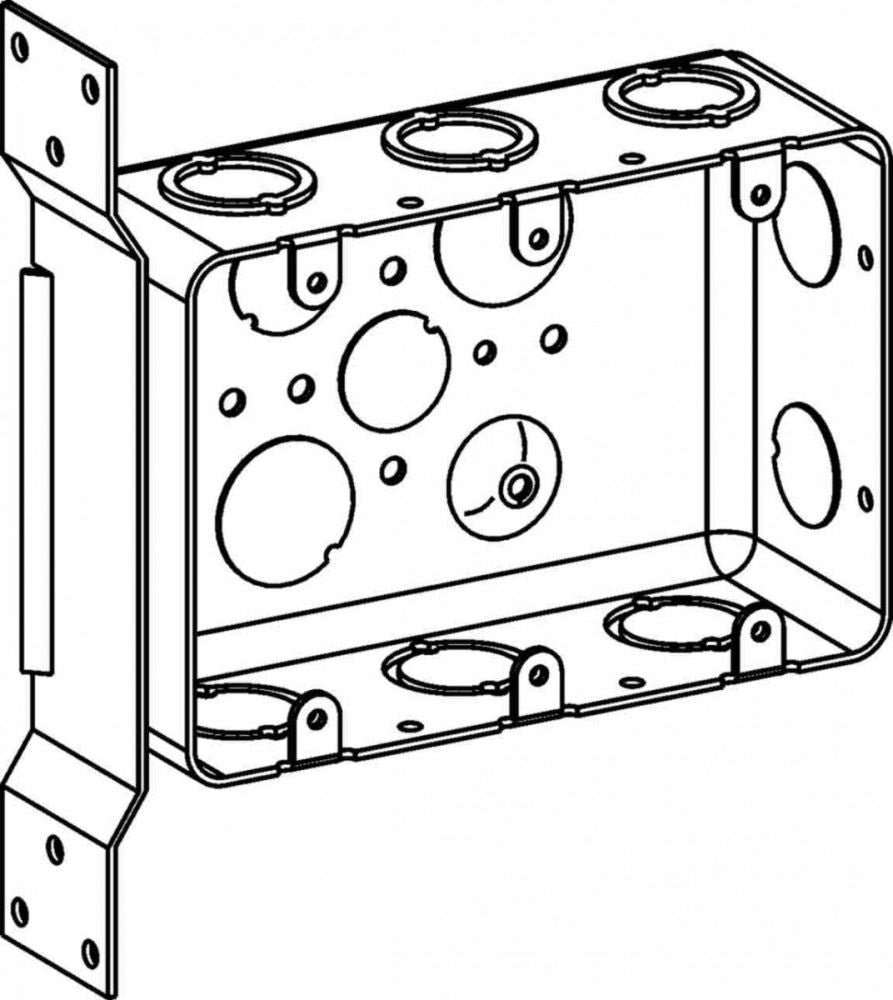

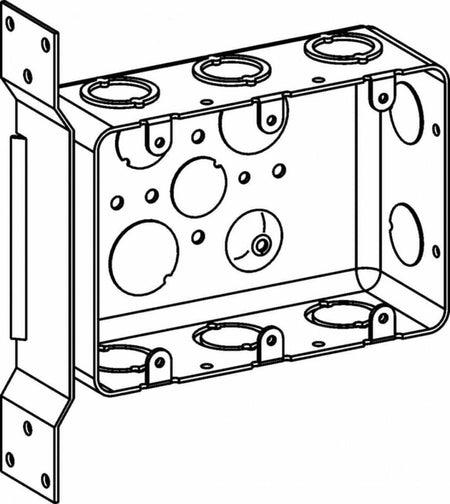

Orbit Industries DHB-3-FB Electrical Switch Handy Box

  • Sale
  • Regular price $15.76
Shipping calculated at checkout.


Raised Ground Emboss and Device Ears; FB Bracket for Offset Mounting on Flat Side of Stud or Joist; RoHS Compliant; Made in USA

Specifications:

Type: Utility
Height: 4 Inch
Width: 5-3/4 Inch
Depth: 2-1/8 Inch
Capacity: 44 Cu Inch
Number of Knockouts: 12
Knockout Location: (4) Bottom, (8) Side
Knockout Size: (2) 1/2 Inch Bottom, (2) 3/4 Inch Bottom, (2) 1/2 Inch Side, (6) 1/2 Inch and 3/4 Inch Side
Number of Gangs: 3
Material: 16 Gauge Drawn Sheet Steel
Mounting: 7-3/8 Inch L x 1-9/16 Inch W 9/16 Inch Offset FB Bracket
Standard Package: 20
Approval: UL 514A, UL (Canada and US)
