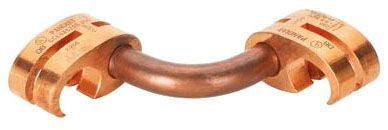

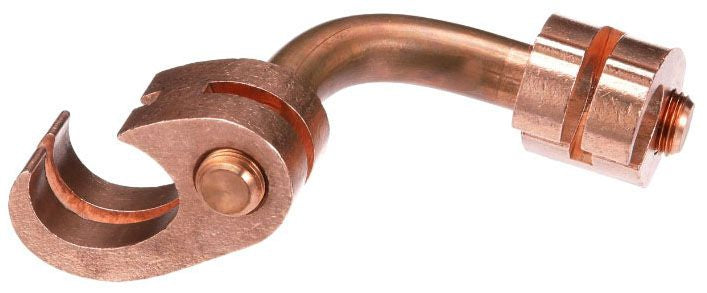

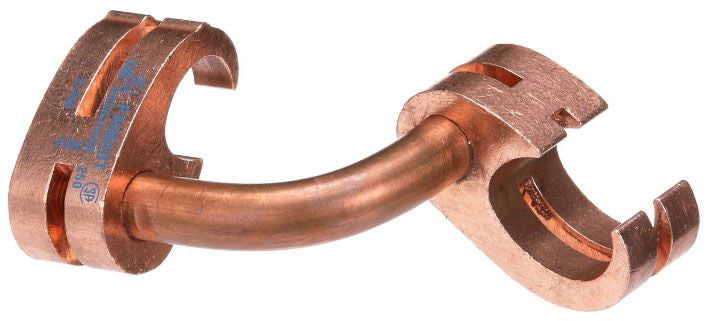

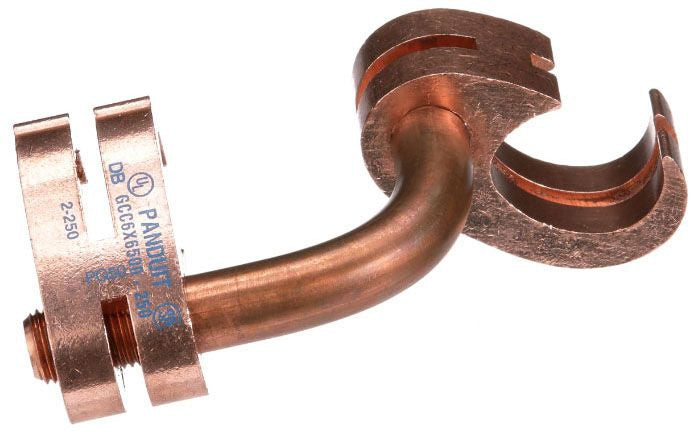

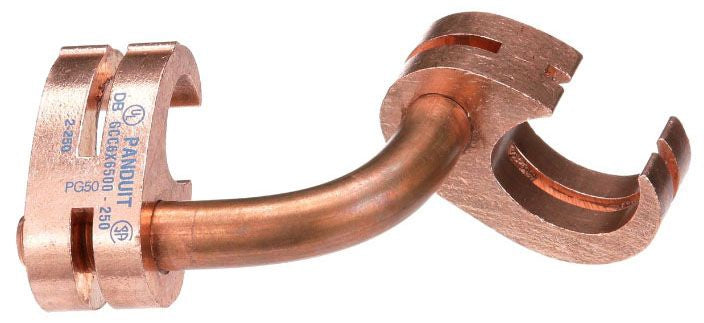

Panduit GCC6X6500-250 Grounding Cross Connector

Out of stock
SKU: 197750
Regular price $135.13
OR

only a Single Die Required to Crimp Each Element, Which Speeds Installation and Reduces Costs; Wide Range Taking Ability and Multi Conductor Design Provide Flexibility with a Minimum Number of Parts, Allowing for Conductor to Conductor, Conductor to Rebar and Conductor to Ground Rod Applications; Pre Applied Conductive Antioxidant Compound Ensures a High Quality Mechanical and Electrical Bond, Speeding Installation

Specifications:

Conductor Material: Copper
Minimum Run Conductor Size: 250 KCMIL
Maximum Run Conductor Size: 500 KCMIL
Minimum Tap Conductor Size: 2 AWG Solid
Maximum Tap Conductor Size: 250 KCMIL
Die Index: PG50
Body Material: Bronze
Approval: UL 467 (Canada and US), CSA C22.2
