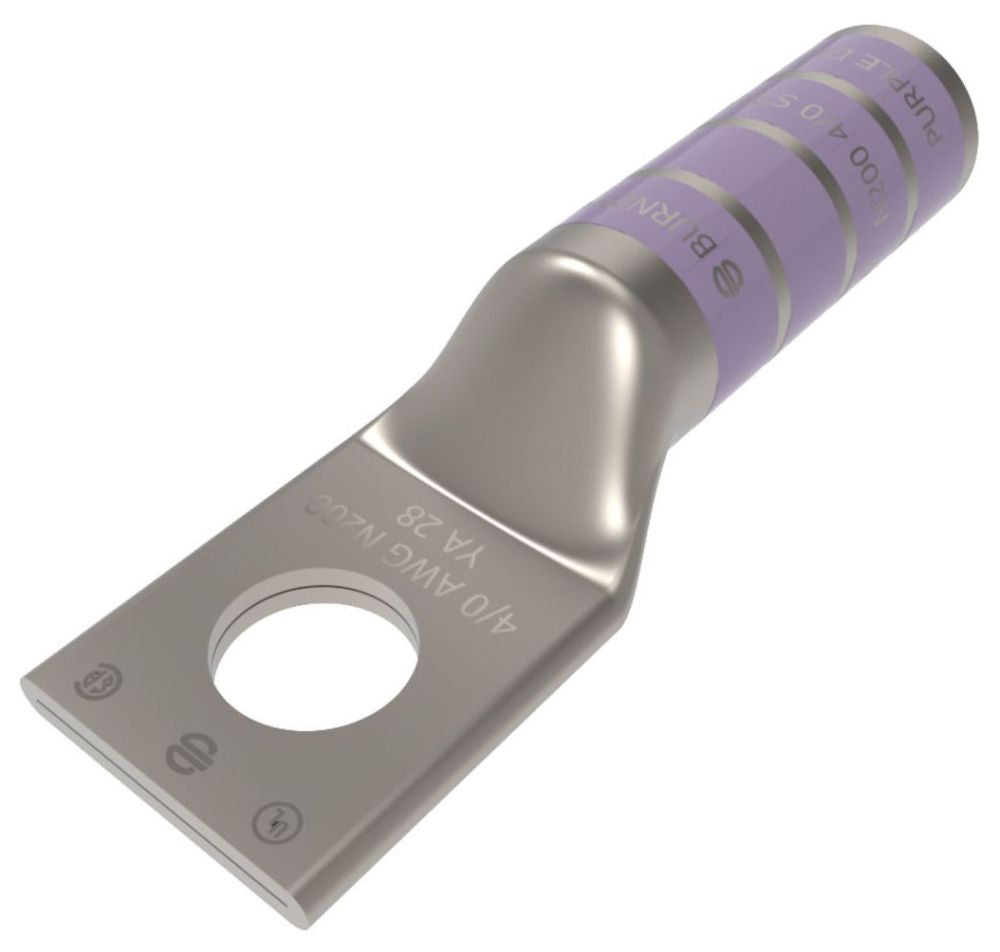

Burndy YA28TC38 Compression Cable Lug

Out of stock
SKU: 198049
Regular price $16.09
OR

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection; Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements; Connectors are Clearly Marked with Stamping and Barrel Color Coding; RoHS Compliant

Specifications:

Voltage Rating: 35 Kilovolt
Conductor Material: Copper
Conductor Size: 4/0 AWG Stranded (Code), 200 (Navy)
Barrel Type: Long, Straight, Non-Insulated
Barrel Length: 1.62 Inch
Pad Size: 1.02 Inch Width x 0.14 Inch Thickness
Number of Pad Holes: 1
Stud Size: 3/8 Inch
Color: Purple
Die Index: 15
Material: Electro Tin Plated Copper
Overall Length: 2.98 Inch
Approval: UL, CSA
