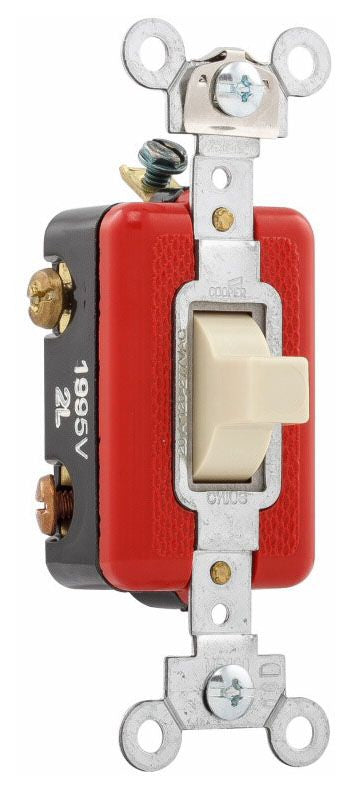

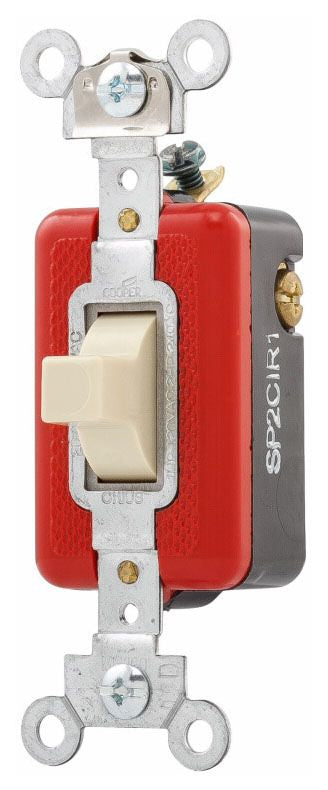

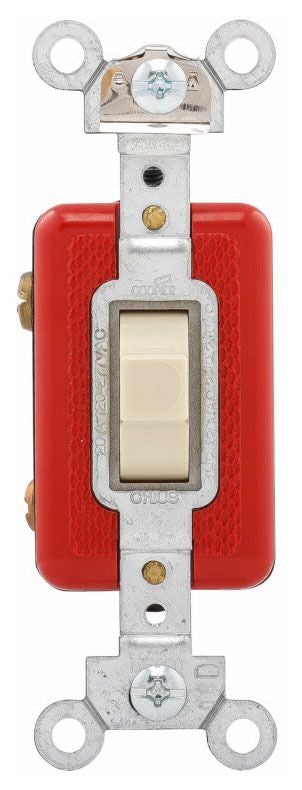

Arrow Hart 1995V AC Toggle Switch

Automatic Grounding Eliminates Need for Bonding Jumper in Metal Enclosures; Robust Nylon Toggle for Heavy Usage Areas; Heavy Gauge 0.050 Inch Plated Steel Mounting Strap Withstands Corrosion; Tri-Combo Head Terminal and Mounting Screws, Plus Easy-Access Grounding Terminal; Dual Back-Wire Holes for Maximum Feed-Thru Wiring Flexibility, Accepts up to #10 Awg Solid or Stranded Wire; One-Piece Brass Contact Arm and Large Silver Alloy Contact Assures Low-Resistance Switching; Patent-Pending Spring Cup Toggle Design for Consistent Positive Activation; RoHS Compliant

Specifications:

Type: Toggle
Current Rating: 20 Ampere
Voltage Rating: 120/277 VAC
Power Rating: 1 HP at 120 VAC, 2 HP at 277 VAC
Operation Type: Momentary, 1-Pole
Color: Ivory
Wiring: Back, Side
Size: 1.31 Inch W x 1 Inch D
Application: Industrial
Approval: UL (Canada and US)
