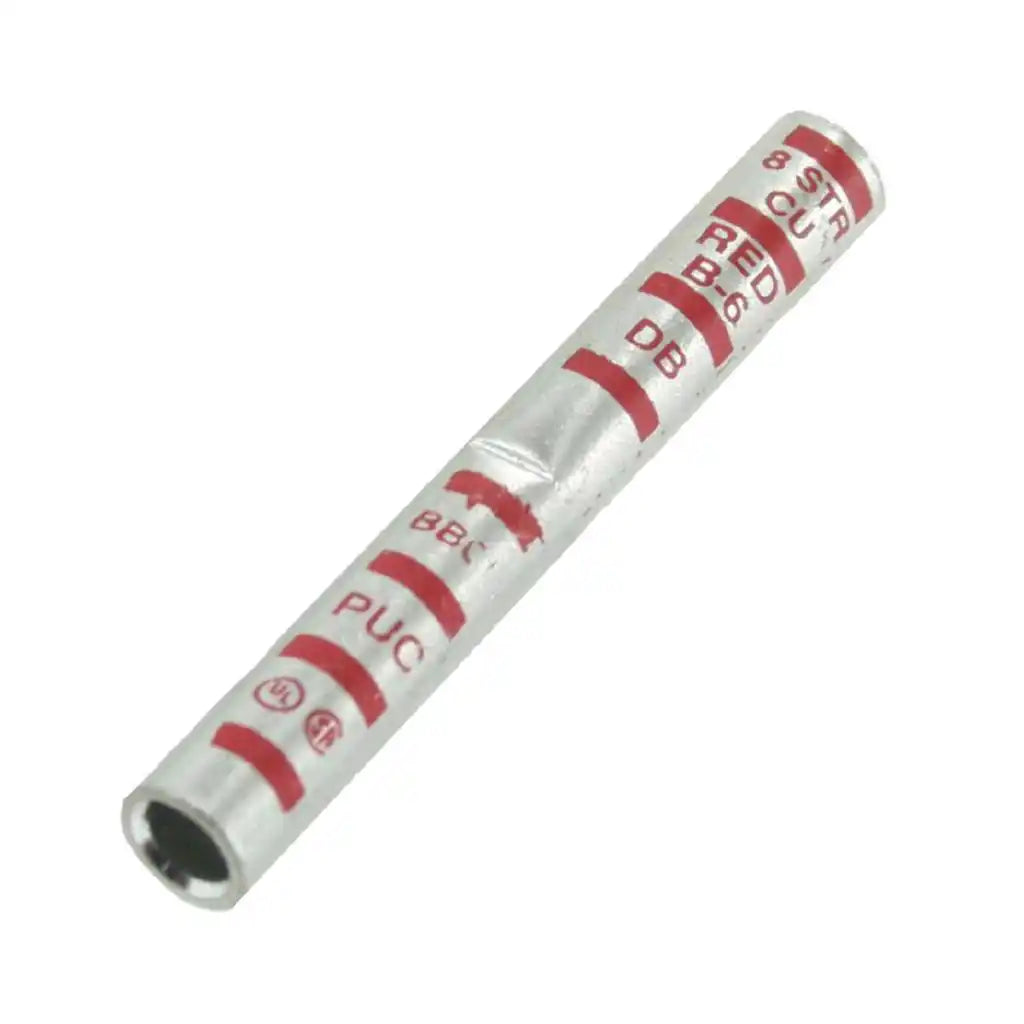

Burndy YS8C Compression Cable Splice

In stock - 27 items available
SKU: 199772
Regular price $4.74

Copper Seamless Barrel has Centre Stop Indentations Used to Indicate When Wire is Fully Inserted into Each Side of the Barrel; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands During Insertion; Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements; Barrel is Color Coded to Ensure Proper Die and Installation Tooling is Selected; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection While Allowing the Connection to Operate at a Lower Temperature Rating; RoHS Compliant


Type: Butt with Center Wire Stop
Voltage Rating: 35 Kilovolt
Conductor Size: 8 AWG Stranded
Conductor Material: Copper
Color Code: Red
Barrel Type: Long with Bevelled Entry, Chamfered
Length: 1.75 Inch
Outer Diameter: 0.27 Inch
Body Material: Electro Tin Plated Copper
Approval: UL, CSA
