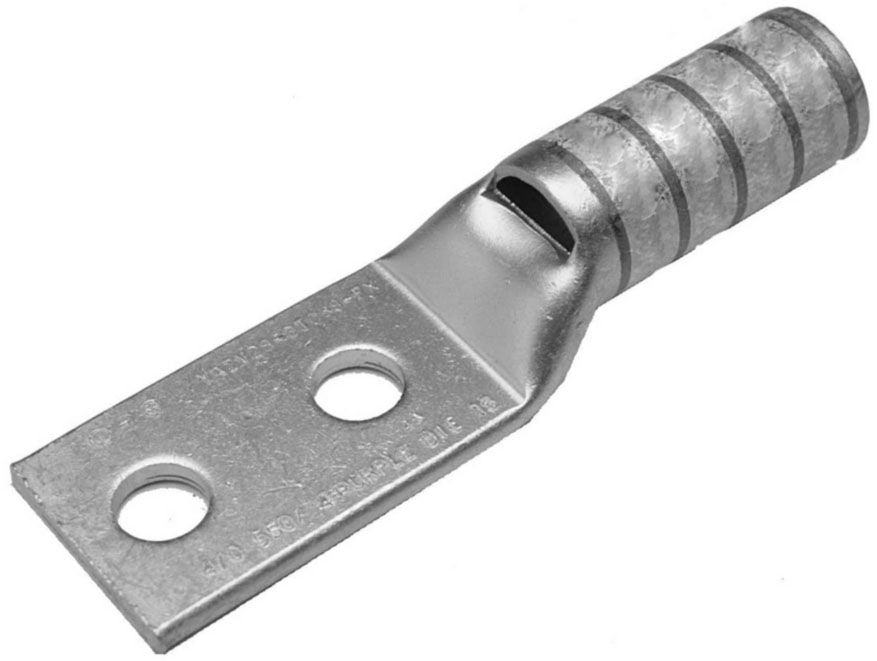

Burndy YAZV252TC38FX Compression Terminal

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 275/24 Diesel Locomotive Cable Flex, 1/0 AWG (Weld Flex), 1/0 AWG Stranded (Flex)
Barrel Type: Long, Straight
Barrel Length: 1.5 Inch
Pad Size: 0.83 Inch W x 0.12 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1 Inch
Stud Size: 3/8 Inch
Color: Pink
Die Index: 12/348
Material: Electro-Tin Plated Copper
Overall Length: 3.76 Inch
Approval: UL, CSA
