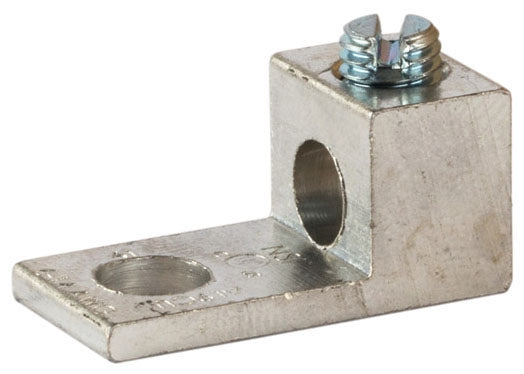

Dual Rated; Versatile and Reusable Set Screw Connectors Made of 6061T-6 Aluminum Alloy; Electro Tin Plated for Low Contact Resistance

Specifications:

Type: Set Screw
Number of Conductors: 2
Minimum Conductor Size: 14 AWG
Maximum Conductor Size: 1/0 AWG
Conductor Material: Copper/Aluminum
Pad Type: Straight
Screw Type: 3/16 Inch Hex
Material: Electro Tin Plated 6061-T6 Aluminum Alloy
Number of Pad Holes: 1
Pad Size: 0.85 Inch Length x 1.13 Inch Width x 0.19 Inch Thickness
Stud Size: 0.265 Inch
Overall Length: 1.47 Inch
Approval: UL 486A/B, UL (Canada and US)
