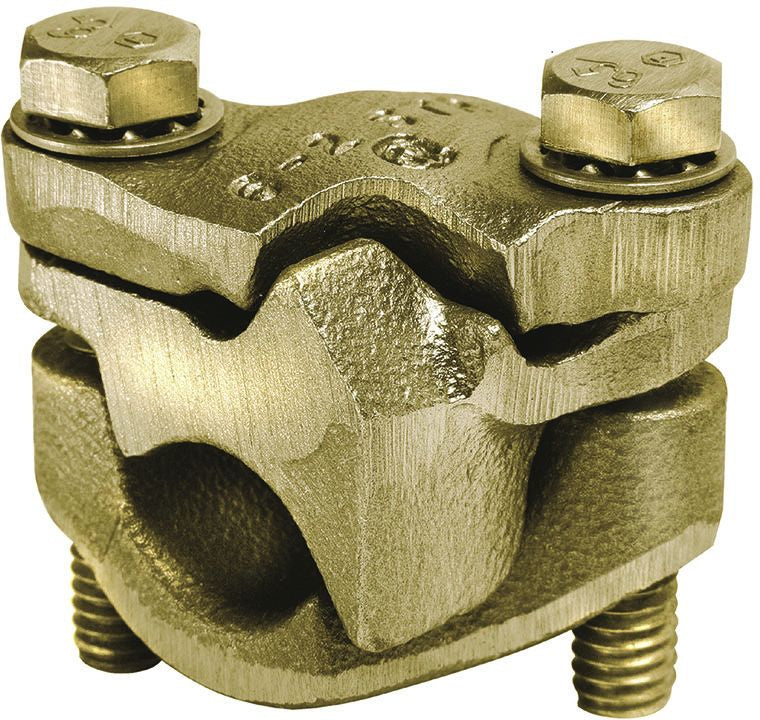

Burndy QPX2C2C Parallel Clamp

The VERSITAP Type QPX connector is recommended for Tee, Cross, Parallel, Butt, and Tap connections. Range-taking, only requires 10 connectors to accommodate conductor sizes from #6 Stranded to 1000 kcmil. Edges are rounded for easy taping. Made of high strength, high conductivity copper alloy and supplied with silicon bronze DURIUM hardware.

Specifications:

Type: Parallel Clamp
Installation: Butt/Cross/Parallel/Tap/Tee Connection
Conductor Material: Copper/Copperweld
Minimum Run Conductor Size: 6 AWG Stranded (Copper), (3)7 AWG Solid (Copperweld), 8 AWG Type A Stranded (Copperweld-Copper)
Maximum Run Conductor Size: 2 AWG Stranded (Copper), 5 AWG Solid (Copperweld), 4 AWG Type A Stranded (Copperweld-Copper)
Minimum Tap Conductor Size: 6 AWG Stranded (Copper), (3) 7 AWG Solid (Copperweld), 8 AWG Type A Stranded (Copperweld-Copper)
Maximum Tap Conductor Size: 2 AWG Stranded (Copper), 5 AWG Solid (Copperweld), 4 AWG Type A Stranded (Copperweld-Copper)
Material: High Conductivity Copper Alloy Body, Durium Silicone Bronze Hardware
Approval: UL 486B, CSA
