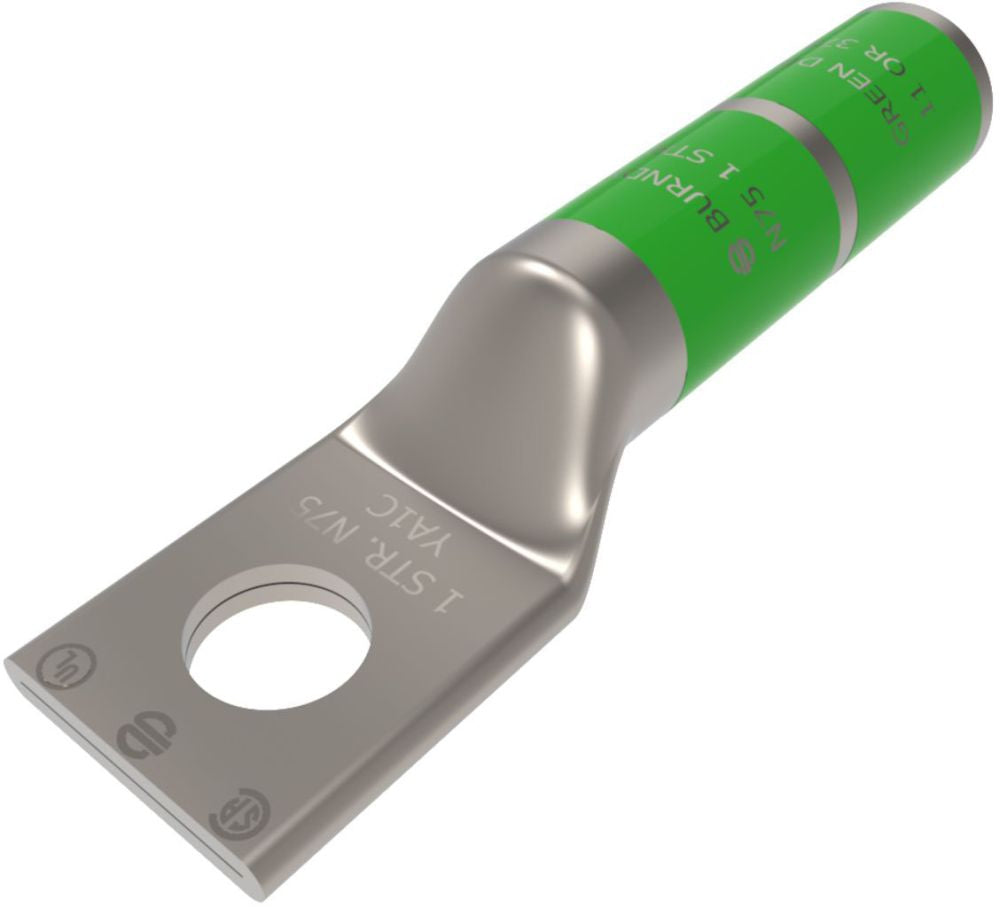

Burndy YA1CN Compression Cable Lug

Out of stock
SKU: 200098
Regular price $14.62
OR

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection; Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements; Connectors are Clearly Marked with Stamping and Barrel Color Coding; RoHS Compliant

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 1 AWG Stranded (Code)
Barrel Type: Long, Straight
Barrel Length: 1.38 Inch
Pad Size: 0.83 Inch W x 0.12 Inch Thk
Number of Pad Holes: 1
Stud Size: 1/2 Inch
Color: Green
Die Index: 11
Material: Electro-Tin Plated Copper
Overall Length: 3.06 Inch
Approval: UL, CSA
