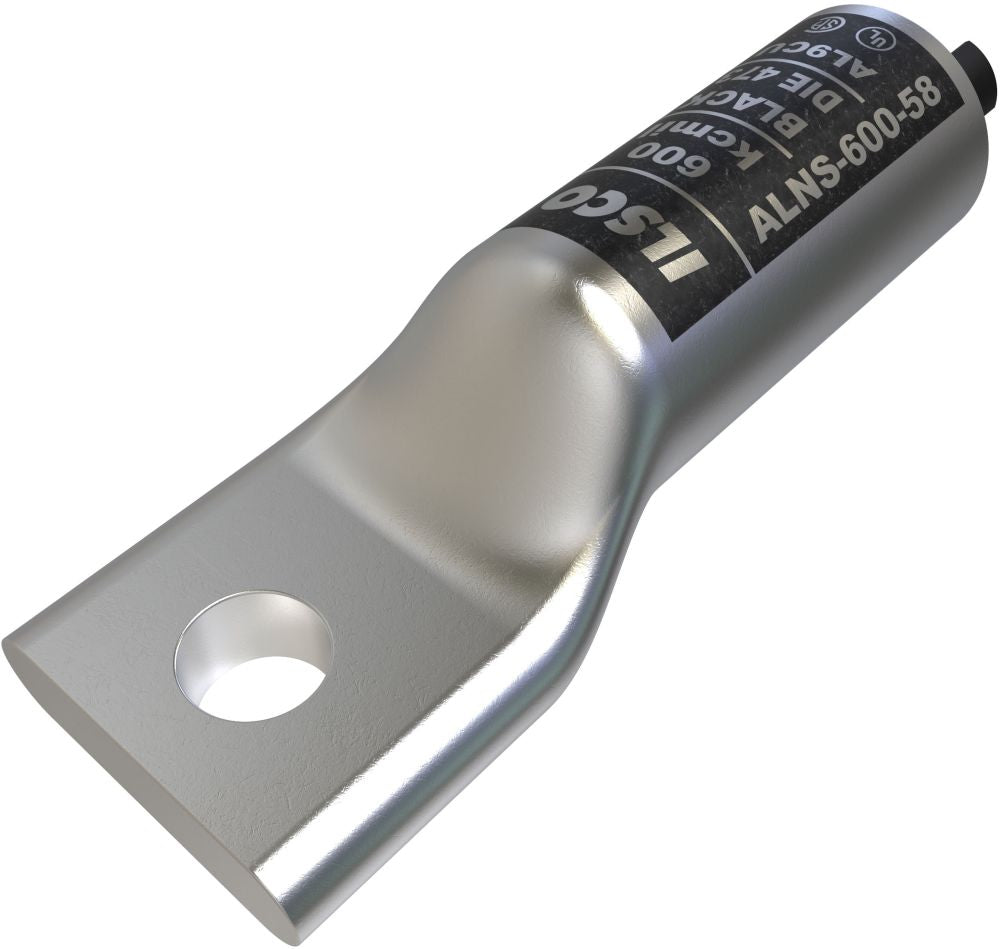

Ilsco ALNS-600-58 Compression Cable Lug

Manufactured from High Strength Aluminum Alloy Offers Maximum Conductivity and Excellent Crimping Characteristics; Electro Tin Plated Provides Low Contact Resistance; Chamfered Entry for Easy Conductor Insertion; Color Coded End Cap Identifies the Proper Compression Die; Roll Marked for Easy Identification and Proper Location of Crimps; Pre-Filled with De-Ox Oxide Inhibiting Compound Prevents Oxides from Forming and Promotes Connector Longevity; Range Taking Permits Inventories to be Kept to a Minimum; Application Versatility; RoHS Compliant

Specifications:

Voltage Rating: 35 KV
Conductor Material: Aluminum
Conductor Size: 600 KCMIL
Barrel Type: Long
Barrel Length: 2.685 Inch
Pad Size: 1.528 Inch L x 1.965 Inch W x 0.52 Inch Thk
Number of Pad Holes: 1
Stud Size: 5/8 Inch
Color: Black
Die Index: 473
Material: Electro-Tin Plated Aluminum Alloy
Overall Length: 5.35 Inch
Approval: UL 453G, UL 486A/B, CSA
