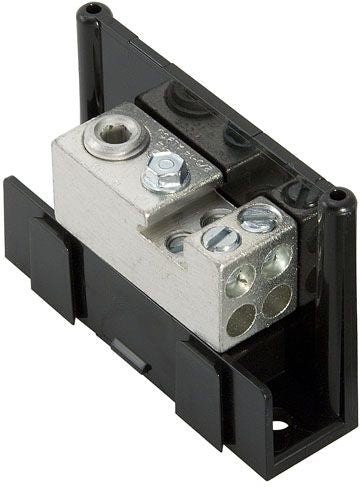

Ilsco PDA-14-2/0-1 Power Distribution Block

Modular Design; Easy to Assemble; Simplifies Stocking, Combines any Number of Blocks with Multiple Conductor Ranges into the Specific Configuration Required for the Job; Unique Locking Feature Allows Individual Blocks to be Combined Quickly without Special Tools; Ensures Reliability; Provides Low Contact Resistance; Provides a High Degree of Impact Resistance with Superior Insulating Qualities; Suitable for Use with Either Copper or Aluminum Conductors; RoHS Compliant

Specifications:

Type: Adder, Modular
Voltage Rating: 600 V
Current Rating: 175 Ampere
Number of Primary Openings per Pole: 1
Primary Opening Wire Size: 14 to 2/0 AWG
Number of Secondary Openings per Pole: 4
Secondary Opening Wire Size: 14 to 4 AWG
Conductor Material: Aluminum/Copper
Size: 2.88 Inch W x 1.94 Inch H
Temperature Rating: 90 Deg C
Connector Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
Approval: UL 1059, CSA
