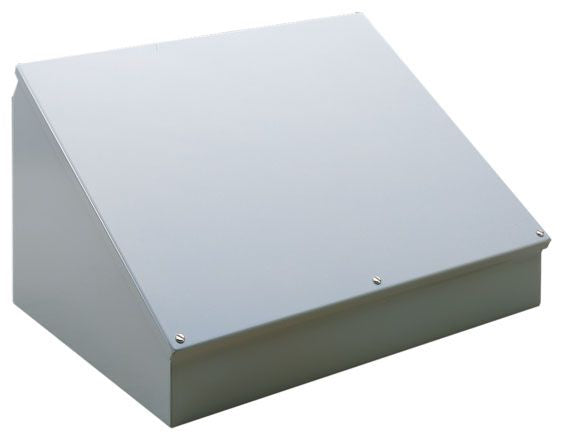

Hoffman Enclosures C12C24 Enclosure Consolet
Couldn't load pickup availability
Consolets are ideal for mounting small control or instrumentation devices where the desirable access requires a 30- or 60-degree surface. These enclosures can be mounted on either of two sides for placement on desktops, pedestals or other flat surfaces to achieve maximum flexibility.
Specifications:
Type: Control
Height: 12 Inch
Width: 24 Inch
Depth: 9.09 Inch
Control Panel Height: 12.28 Inch
Control Panel Width: 24.28 Inch
Control Panel Angle: 30/60 Degree
Control Panel Mounting: Continuous Hinge with Screw, Gasketed
Material: Steel
Material Specification: 14 Gauge
Color: ANSI 61 Gray
Finish: Polyester Powder Coated
Enclosure: NEMA 12/13, IP65
Mounting: Desktop/Pedestal/Surface
Service Type: Indoor
Approval: UL 508A, CUL, CSA C22.2
