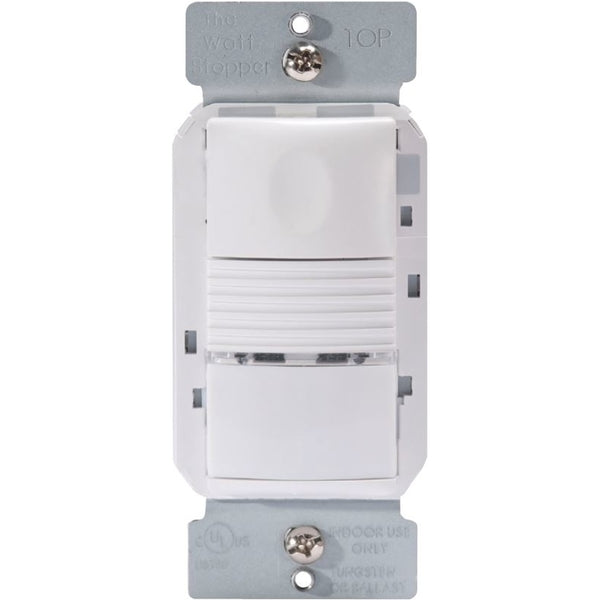

The PW-100D Passive Infrared (PIR) Dimmable Wall Switch Sensor Turns Lights On and Off Based on Occupancy; It is Characterized by High Sensitivity to Small and Large Movements, Appealing Aesthetics and a Variety of Features; High Sensitivity and Dense Coverage for Exceptional Performance; Color Matched Lens and Low Profile for Appealing Design; Pushbutton Dimming Control and Optional Locked Preset Level; Selectable Auto Set, Walk-Through, Test and Presentation Modes for Increased Energy Savings and Convenience; Part of a Comprehensive Line of PRI Ultrasonic and Dual Technology Wall Switch Sensors; Detection Signature Processing Eliminates False Triggers and Provides Immunity to RFI and EMI; Zero-Crossing Circuitry for Reliability and Increased Product Life; Vandal Resistant Lens Combines Precise Coverage with Durability; Choice of Auto-On or Manual-On Operation; Selectable Walk-Through Mode Turns Lights Off Three Minutes after the Room is Initially Occupied if No Motion is Detected after the First 30 Seconds; Test Mode Allows Quick and Easy Adjustments; Selectable Audible and/or Visual Alerts for Impending Shutoff; In Automatic Mode, Sensor Returns Automatically to Auto-On after Lights Are Turned Off Manually; LED Indicates Occupancy Detection; Can Dim Lights to Any Level without Affecting the Preset Level; Preset Ramp and Fade Times; Optional Light Level Sensing with Simple Setup; Override Mode Allows Sensor to Operate as a Service Switch in the Unlikely Event of a Failure; Sensor Coverage Tested to NEMA Guide Publication WD7-2000; Requires Neutral Connection; 5 Year Warranty

Specifications:

Type: Sensor with Relay
Sensor Type: Passive Infrared
Voltage Rating: 120/277 VAC at 50/60 Hz
Load Type: Incandescent, MLV, ELV, Cold Cathode/Fluorescent Ballast
Load Rating: 0 to 600 W at 120 VAC (Incandescent/MLV/ELV/Cold Cathode/Fluorescent Ballast), 0 to 1200 W at 277 VAC (Fluorescent Ballast)
Area Coverage: 35 Ft x 30 Ft (Major Motion), 20 Ft x 15 Ft (Minor Motion)
Time Delay: 5/10/15/20/25/30 Min (Fixed)
Terminal Type: 3-Wire Lead
Finish: White
Mounting: Wall
Size: 2.73 Inch L x 1.76 Inch W x 1.83 Inch D
Application: Small Office, Small Conference Room
Approval: UL, CUL
