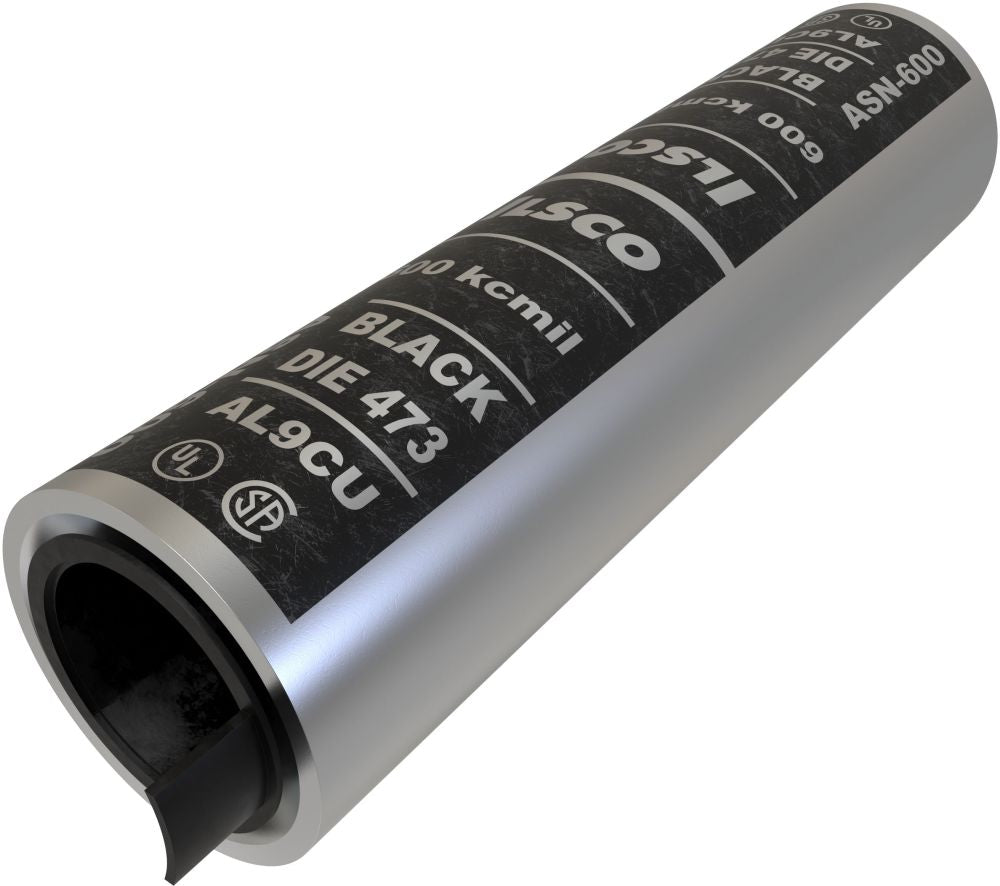

Ilsco ASN-600 Compression Cable Sleeve

Manufactured from High Strength Aluminum Alloy Offers Maximum Conductivity and Excellent Crimping Characteristics; Electro Tin Plated Provides Low Contact Resistance; Chamfered Entry for Easy Conductor Insertion; Color Coded End Cap Identifies the Proper Compression Die; Roll Marked for Easy Identification and Proper Location of Crimps; Pre-Filled with De-Ox Oxide Inhibiting Compound Prevents Oxides from Forming and Promotes Connector Longevity; Range Taking Permits Inventories to be Kept to a Minimum; Application Versatility; RoHS Compliant

Specifications:

Conductor Size: 600 KCMIL
Conductor Material: Aluminum/Copper
Color Code: Black
Barrel Type: Standard with Chamfered End
Length: 5.37 Inch
Inner Diameter: 0.92 Inch
Outer Diameter: 1.44 Inch
Body Material: Electro-Tin Plated High Strength Aluminum Alloy
Approval: UL 453G, UL 486A/B, CSA
