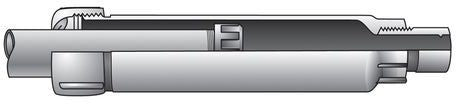

O-Z/Gedney AX-8-75 IMC/Rigid Conduit Expansion Fitting

Out of stock
SKU: 201061
Regular price $106.64
OR

O-Z/Gedney AX expansion fittings allow for expansion and contraction in a run of rigid metal conduit and IMC. They can be used for applications involving IMC. Due to the slightly smaller O.D. of the IMC, a 15 foot minimum length of rigid conduit should be used entering the expansion fitting. Type AX provides for a maximum of 4 inch conduit movement, 2 inch in either direction.

Specifications:

Trade Size: 3/4 Inch
Diameter: 2-1/4 Inch
Length: 10-3/8 Inch
Maximum Movement: 8 Inch
Constructional Feature: Concrete-Tight, Weatherproof
Material: Hot Dip Galvanized Malleable/Ductile Iron
Approval: UL 514B, CSA C22.2
Used On: Rigid Metal Conduit/IMC
