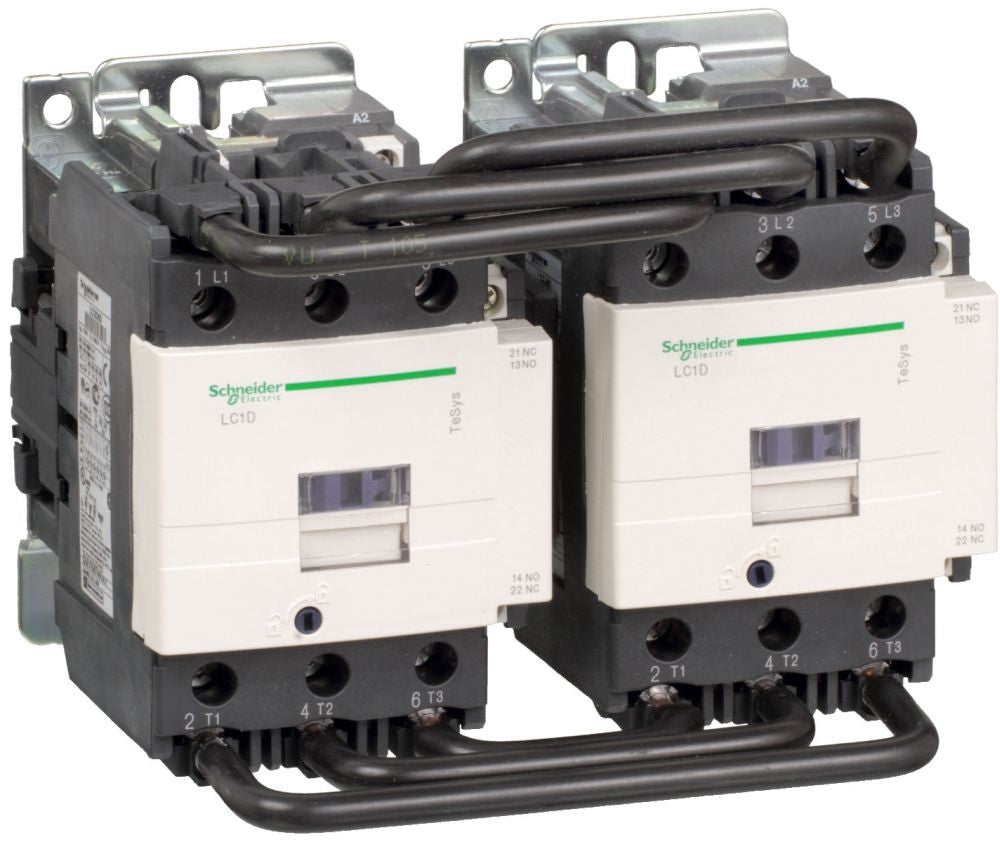

Schneider Electric LC2D80G7 Motor Control Contactor

RoHS/REACH Compliant; Mercury-Free; PVC-Free; Toxic Heavy Metal Free; Green Premium Product

Specifications:

Type: Full Voltage, Reversing
Number of Poles: 3
Power Rating/Voltage: 7.5 HP at 115/120 VAC 50/60 Hz, 15 HP at 230/240 VAC 50/60 Hz 1 Phase, 25 HP at 200/208 VAC 50/60 Hz, 30 HP at 220/240 VAC 50/60 Hz, 60 HP at 460/480/575/600 VAC 50/60 Hz 3 Phase, 22 KW at 220/230 VAC 50/60 Hz, 37 KW at 380/400 VAC 50/60 Hz, 45 KW at 415/440/660/690 VAC 50/60 Hz, 55 KW at 500 VAC 50/60 Hz 3 Phase
Current Rating: 65 Ampere (AC-3)
Inductive Ampere: 80 Ampere (AC-3)
Resistive Ampere: 110 Ampere (AC-1)
Coil Voltage: 120 VAC at 50/60 Hz
Auxiliary Contact: 1NO-1NC
Mounting: Horizontal
Enclosure: Open
Construction Standard: IEC
Approval: UL 508, CSA C22.2, CE, GL, GOST, RINA
