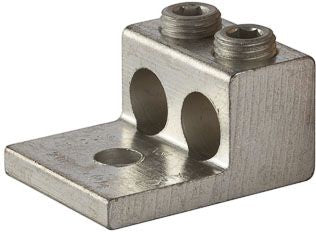

Versatile and Reusable Set-Screw Connectors Made of 6061T-6 Aluminum Alloy; Electro Tin Plated for Low Contact Resistance; For Use with Copper/Aluminum Conductors

Specifications:

Type: Set Screw, Double Lug
Number of Conductors: 2
Minimum Conductor Size: 6 AWG
Maximum Conductor Size: 250 KCMIL
Conductor Material: Copper/Aluminum
Screw Type: 5/16 Inch Hex
Material: Electro Tin Plated 6061-T6 Aluminum Alloy
Number of Pad Holes: 1
Pad Size: 1.69 Inch Length x 1.63 Inch Width x 0.22 Inch Thickness
Stud Size: 0.328 Inch
Overall Length: 2.56 Inch
Approval: UL (Canada and US), UL 486A/B
