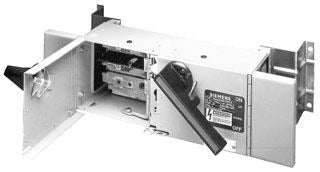

NEMA Phasing; Pressure Terminal Connector; Connection Screw; Quick-Make Quick-Break; Easy Mounting; Padlocking Member; Exclusive VacuUM Breaker Clampmatic Arc Control; Fiber End Barrier; High Pressure Spring Reinforced Copper Fuse Clip; Voidable Cover Int

Specifications:

Type: Fusible
Voltage Rating: 240 Volt AC
Current Rating: 100 Ampere
Power Rating: 15 HP at 240 VAC (Standard), 30 HP at 240 VAC (Maximum)
Number of Poles: 3
Wire Size: (1) 14 to 1/0 AWG (Copper/Aluminum)
Size: 17 Inch Width x 6-3/4 Inch Depth x 7-1/2 Inch Height
Used On: F1/F2 Panelboard, SB1/SB2 Switch Board
Approval: UL 98
