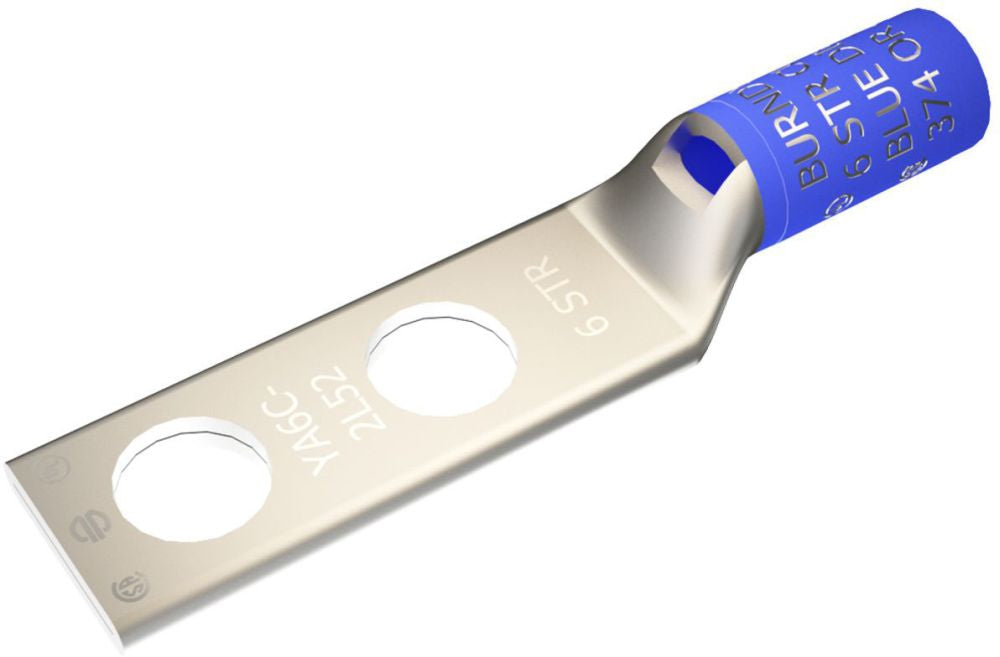

Burndy YA6CL2TC14 Compression Cable Lug

Out of stock
SKU: 201264
Regular price $8.64
OR

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Short/Standard Length Barrel is Recommended for Installations with Limited Space Requirement

Specifications:

Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 6 AWG Solid/Stranded
Barrel Type: Short, Standard, Chamfered, Skived
Barrel Length: 0.54 Inch
Pad Size: 0.45 Inch Width x 0.08 Inch Thickness
Number of Pad Holes: 2
Pad Hole Spacing: 5/8 Inch
Stud Size: 1/4 Inch
Color: Blue
Die Index: 7/374
Material: Electro Tin Plated Copper
Overall Length: 2.07 Inch
Approval: UL 468A/B, CSA
