Specifications:

Type: Metal Framing, Single
Number of Channels: 1

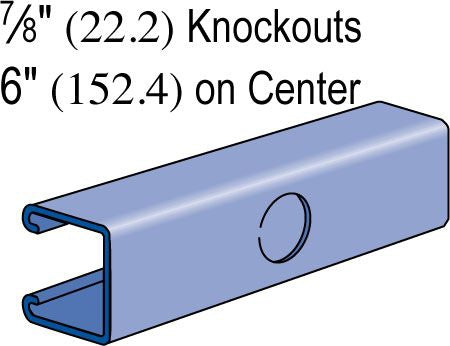

Configuration: Knockout
Cross Section Area: 0.555 Square Inch
Thickness: 12 Gauge
Length: 10 Foot
Width: 1-5/8 Inch
Height: 1-5/8 Inch
Center Spacing: 6 Inch
Material: ASTM A653 Grade 33 Low Carbon Steel
Process: Cold Formed
Finish: Pre-Galvanized
Column Load Rating: 2700 Pound (0.65 Load Factor)
Beam Load Rating: 323 Pound
Deflection: 1.4 Inch
Weight: 190 Pound per 100 Foot
Applicable Standard: UL E19459, CSA 013669
