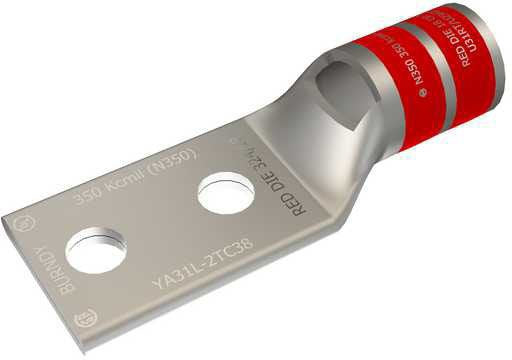

Burndy YA312LN Compression Cable Lug

Out of stock
SKU: 201701
Regular price $34.83
OR

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands; Short/Standard Length Barrel is Recommended for Installations with Limited Space Requirements; Two Hole Tongue/Tang is Recommended When Space Permits as the 2-Hole Feature Minimizes the Terminations from Loosening or Rotating Under Vibration, Movement, or Heat Cycling; Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements; Connectors are Clearly Marked with Stamping and Barrel Color Coding; RoHS Compliant

Specifications:

Voltage Rating: 35 Kilovolt
Conductor Material: Copper
Conductor Size: 350 KCMIL Stranded (Code), 350 (Navy)
Barrel Type: Standard, Straight
Barrel Length: 1.06 Inch
Pad Size: 1.29 Inch Width x 0.18 Inch Thickness
Number of Pad Holes: 2
Pad Hole Spacing: 1-3/4 Inch
Stud Size: 1/2 Inch
Color: Red
Die Index: 18/324
Material: Electro Tin Plated Copper
Overall Length: 4.7 Inch
Approval: UL, CSA
