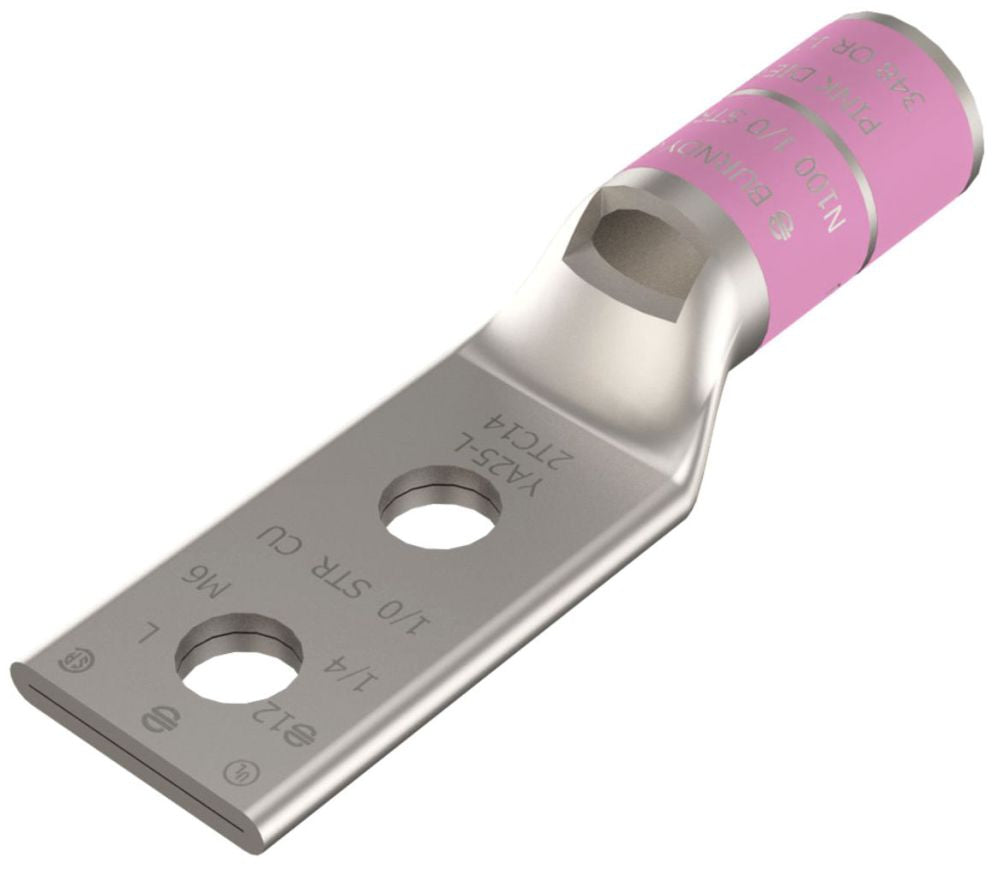

Burndy YA252LN Compression Cable Lug

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Short/Standard Length Barrel is Recommended for Installations with Limited Space Requirements; Two Hole Tongue/Tang is Recommended When Space Permits as the 2-Hole Feature Minimizes the Terminations from Loosening or Rotating Under Vibration, Movement, or Heat Cycling; Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements; Connectors are Clearly Marked with Stamping and Barrel Color Coding; RoHS Compliant

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 1/0 AWG Stranded (Code)
Barrel Type: Short, Skived, Standard, Straight
Barrel Length: 0.88 Inch
Pad Size: 0.83 Inch W x 0.11 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1-3/4 Inch
Stud Size: 1/2 Inch
Color: Pink
Die Index: 12/348
Material: Electro-Tin Plated Copper
Overall Length: 4.29 Inch
Approval: UL, CSA
