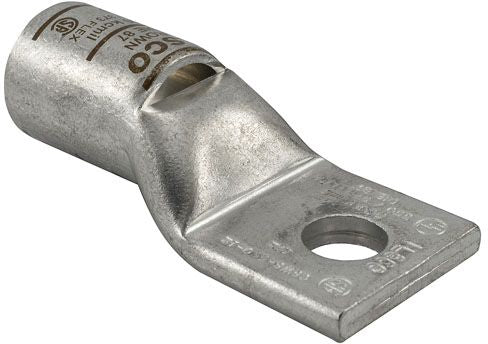

Ilsco CSWS-3/0-12 Compression Cable Lug

Manufactured from High Strength Seamless Copper Tubing Offers Maximum Conductivity and Excellent Crimping Characteristics; Electro Tin Plated Provides Low Contact Resistance; Chamfered Entry for Easy Conductor Insertion; Color Coded Identifies the Proper Compression Die; Application Versatility; Reduces Inventory Requirements; RoHS Compliant

Specifications:

Voltage Rating: 35 Kilovolt
Conductor Material: Copper
Conductor Size: 3/0 AWG
Barrel Type: Standard, Straight
Barrel Length: 0.75 Inch
Pad Size: 1.25 Inch Length x 0.885 Inch Width
Number of Pad Holes: 1
Stud Size: 1/2 Inch
Color: Orange
Die Index: I-50
Material: Electro Tin Plated High Strength Seamless Copper
Overall Length: 2.439 Inch
Approval: UL 453G/467/486A/B, CSA
