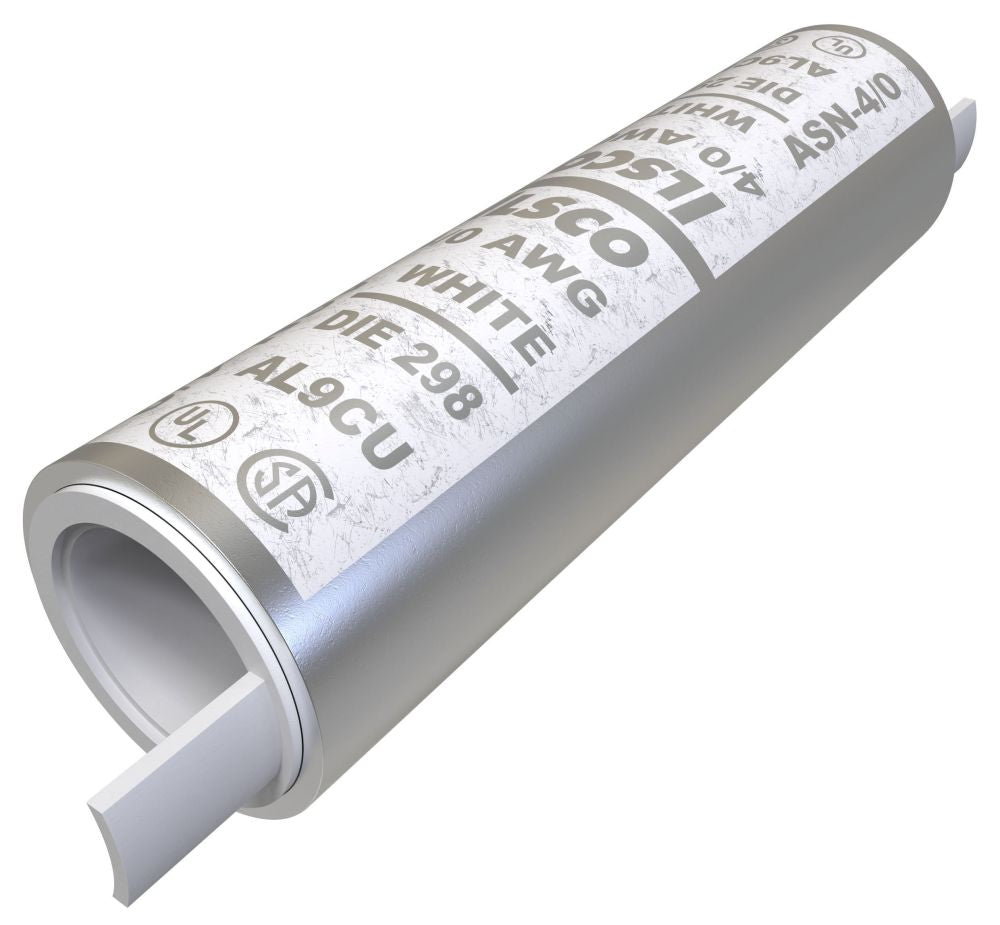

Ilsco ASN-4/0 Compression Sleeve

Manufactured from High Strength Aluminum Alloy; Electro-Tin Plated; Chamfered Entry; Color Coded End Cap; Roll Marked; Pre-Filled with De-Ox Oxide Inhibiting Compound; Range Taking; Suitable for Use in Circuits Rated 35Kv or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; Dual Rated Al9Cu to 90 Deg C; Offers Maximum Conductivity and Excellent Crimping Characteristics; Provides Low Contact Resistance; for Easy Conductor Insertion; Identifies the Proper Compression Die; For Easy identification and Proper Location of Crimps; Prevents Oxides from Forming and Promotes Connector Longevity; Permits Inventories to be Kept to a Minimum; Versatility; For Use with Aluminum or Copper Conductor; RoHS Compliant

Specifications:

Voltage Rating: 35 KV
Conductor Size: 4/0 AWG
Conductor Material: Aluminum/Copper
Color Code: Ruby
Barrel Type: Chamfered Entry
Length: 3.07 Inch
Inner Diameter: 0.553 Inch
Outer Diameter: 0.854 Inch
Body Material: Electro Tin Plated High Strength Aluminum Alloy
Approval: UL 453G, UL 486A/B, CSA
