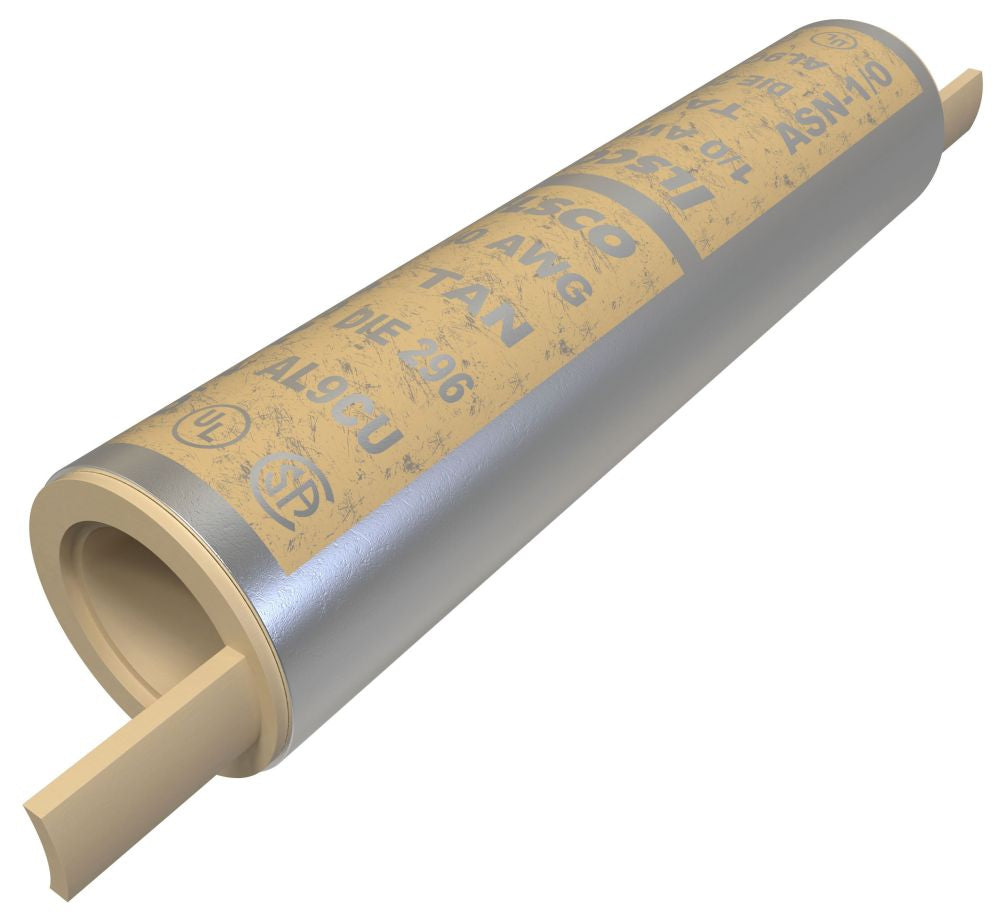

Ilsco ASN-1/0 Compression Sleeve
Regular price
$21.25
Couldn't load pickup availability
Offers maximum conductivity and excellent crimping characteristics; Provides low contact resistance; for Easy Conductor Insertion; Identifies the Proper Compression Die; For Easy identification and Proper Location of Crimps; Prevents oxides from forming and promotes connector longevity; Permits inventories to be kept to a minimum; Application versatility; RoHS Compliant
Specifications:
Type: Dual Rated
Voltage Rating: 35 Kilovolt
Conductor Size: 1/0 AWG
Conductor Material: Copper/Aluminum
Color Code: Tan
Barrel Type: Chamfered Entry
Length: 2.573 Inch
Inner Diameter: 0.385 Inch
Outer Diameter: 0.599 Inch
Body Material: Electro Tin Plated Aluminum Alloy
Approval: UL, CSA
